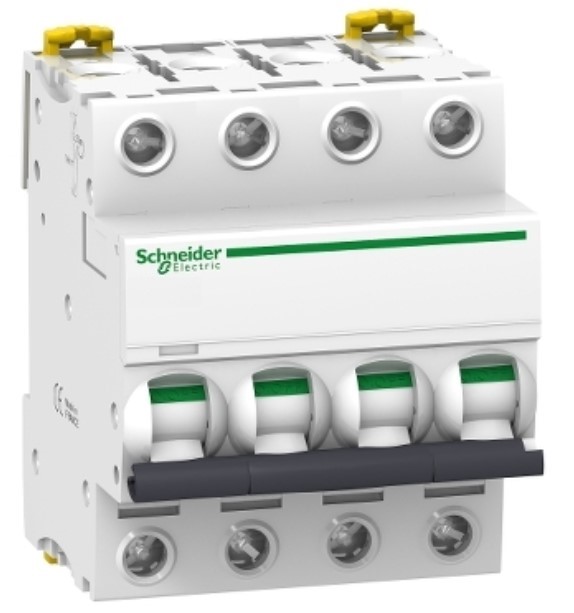

CIRCUIT BREAKER MCB (S-A9F78440) B-curve, 40A Icu6kA, 4P mod
NST
PELEMCBS4B40M
Valid Article
Account code:
61220
HS Code:
853690
Last Updated on:
07/11/2024, 19:39:29
Former
Code(s):
PELEZTF0394 PELEZNL0353 PELEBMCB4B40 PELEMMCB4B40M
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
CIRCUIT BREAKER MCB (S-A9F78440) B-curve, 40A Icu6kA, 4P mod
Form
Thermo-magnetic circuit breaker, S-A9F78440:
- 4 pole, 40 A, B-curve
- 440 V AC, 50/60 Hz
- Icu 6 kA conforming to EN/IEC 60947-2
- single terminal, top or bottom rigid wire(s): 1-25 mm² max.
- single terminal, top or bottom flexible wire(s): 1-16 mm² max.
- operational temperature: -35 ... +70 °C
- dimensions (HxWxD): 85 x 72 x 78.5 mm
- weight: 0.5 kg
Per piece.
Fit
Compatible with main circuit and distribution boards of similar make and technical specifications.
It's fitting the DIN modular system (=mod).
Function
MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.
If an overload condition is detected the MCB is switching off the circuit using a mechanical switch.
