GABION diaphragms, galvanised, 2x1x1m
NST
CBUIGABI1H211
Valid Article
Account code:
61000
Last Updated on:
04/07/2024, 22:12:38
Former
Code(s):
CBUIZBE0325
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
GABION diaphragms, galvanised, 2x1x1m
Form
Gabion diaphragms are rectangular structures made of galvanised double twisted hexagonal wire mesh with diaphragms. Each wire has a tensile strength of 372-490 N/mm². The wire has a nominal diameter of 3.00 mm (+/-0.08mm). Meets standards BSS 1052/1980.
Fit
Sizes:
Length (m): 2 +/- 3 %
Width (m): 1 +/- 5 %
Height (m): 1 +/- 10 % with a maximum of 6 cm
Function

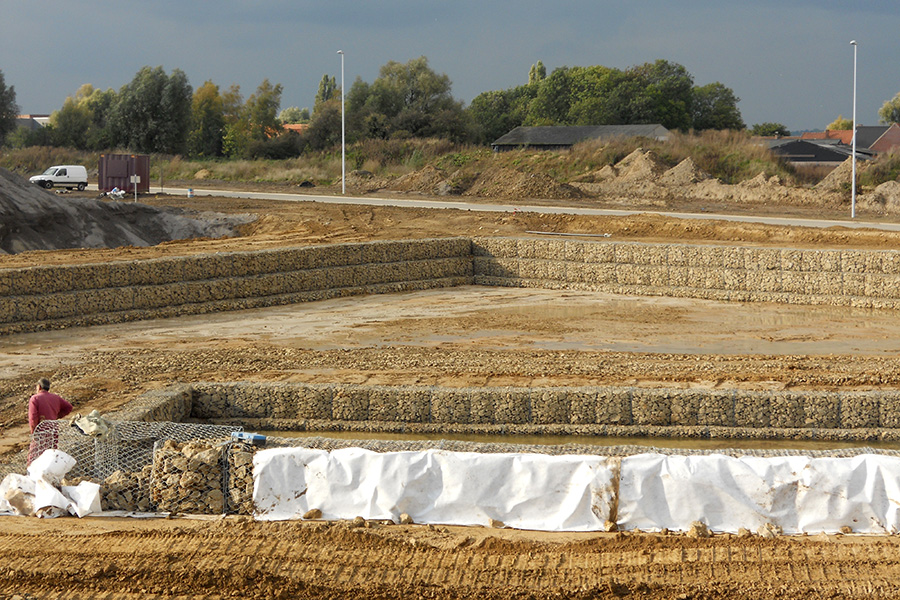

They are mainly used in hydraulic projects, as protection of riverbanks and embankments, but also during road construction, primarily as retaining wall.
