KIT EMERGENCY DIES.GENSET 10kW 230V 50Hz Yanmar EG140i INSO
Valid Article
KIT EMERGENCY DIES.GENSET 10kW 230V 50Hz Yanmar EG140i INSO
Definition
Kit for the implementation of a single phase electrical network (generator + distribution) in an emergency context.

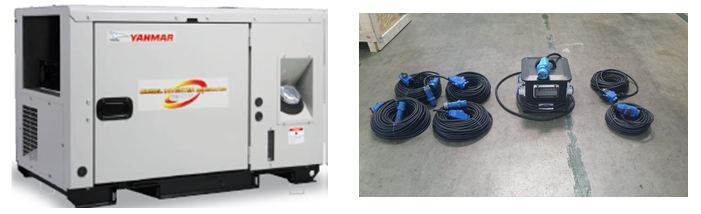

The kit consists of:
- 1 x 10kVA Generator Module Yanmar Eg140i
MSF Reference: KPROMGEND10JK
Weight : 362 g Vol : 1170 dm3 Price : 8707 €
- 1 x Remote site distribution module 10kVA
MSF Reference: KPROMDISD10K
Weight : 67 kg Vol : 170 dm3 Price : 1042 €
- 1 x Maintenance module for 5000 hour operation.
MSF Reference: KPROMMAID10K
Weight : 37 kg Vol : 170 dm3 Price : 148 €
Specifications
Transport Dangerous Goods
Generators might be considered as dangerous goods for transport:
- If a shipper or supplier provides written or electronic documentation stating that a flushing and purging procedure for flammable liquid powered engines has been followed in compliance with Special Provision A70 the generator is not subject to IATA DGR regulations
- If not complying with Special Provision A70 then the generator must be managed in compliance to IATA DGR regulations
Instructions for use
Consult your technical department for power calculations.
For maximum security and grounding/earthing connection, refer to the MSF energy guidelines or the included logbook.
Lifetime: 5000 hours, maintenance every 250 hours.
A specific LogBook / fuel follow-up for this model is included with the generator module as well as an autonomous lighting system for night refuelling.
