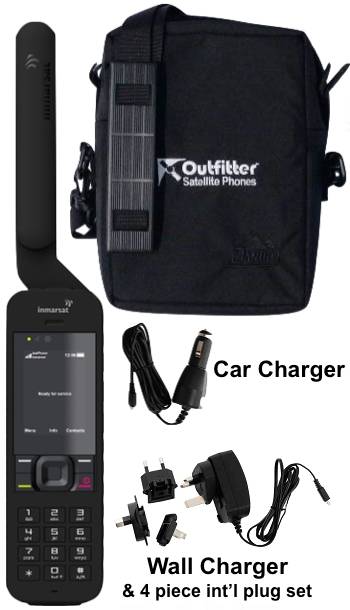

KIT, TRANSCEIVER, SATELLITE, ISATPHONE PRO 2

Definition

Portable satellite phone operating on the Inmarsat satellite network and offering global coverage.

Does not include: carkits or docking unit. They can be ordered separately.

Specifications

Characteristics

  • Dimensions (L x W x D): 170 x 54 x 39 mm
  • Weight: 279 g (with battery)
  • Display: High visibility colour screen
  • Interfaces:
    • Micro-USB port
    • Audio socket
    • Antenna port
    • Bluetooth 2.0
  • Water and dust protection: IP54 rated
  • Operating range: -20 °C to +55 °C
  • Storage range: -20 °C to +70 °C (with battery)
  • Charging range: 0 °C to 45 °C
  • Humidity tolerance: 0 to 95%
  • SAR (specific absorption rate): 0.609 W/kg

Battery

  • Type: lithium-ion 3.7 V
  • Talk time: up to 8 hours
  • Standby time: up to 100 hours

Services

  • Satellite telephony: voice codec 2.4 kbit /s
  • Loudspeaker option
  • Voicemail: speed ​​dial 1
  • Additional voice services:
    • call history
    • caller ID
    • call waiting
    • call forwarding
    • call holding
    • conferencing
    • call barring
    • speed ​​dialling
    • fixed number dialling (FND)
  • SMS to SMS (partial service):
    • 160 Latin characters / ~ 74 non-Latin characters
    • up to 10 concatenations
  • GPS tracking:
    • displays position
    • can be sent by SMS

Note

In theory, email can be sent from the IsatPhone 2 via a dial-up connection to the MSF mail server.

However, data transmission tests were not conclusive, and accordingly you are recommended to use the IsatPhone 2 for voice calls only.

You can send free SMS messages to an IsatPhone 2 via http://www.isatphonelive.com/.

Instructions for use

Extend the antenna vertically and look for the most open spot. Stand still during signal acquisition.
