SOCKET & BIT SET metric, 1/4", 38 pce, R2NANO

https://unicat.msf.org/cat/product/53778
STD PTOOSETSS38B

Valid Article

Former Code(s): FR2NANO PTOOFACO1359 PTOOFACO1360
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

SOCKET & BIT SET metric, 1/4", 38 pce, R2NANO

Form

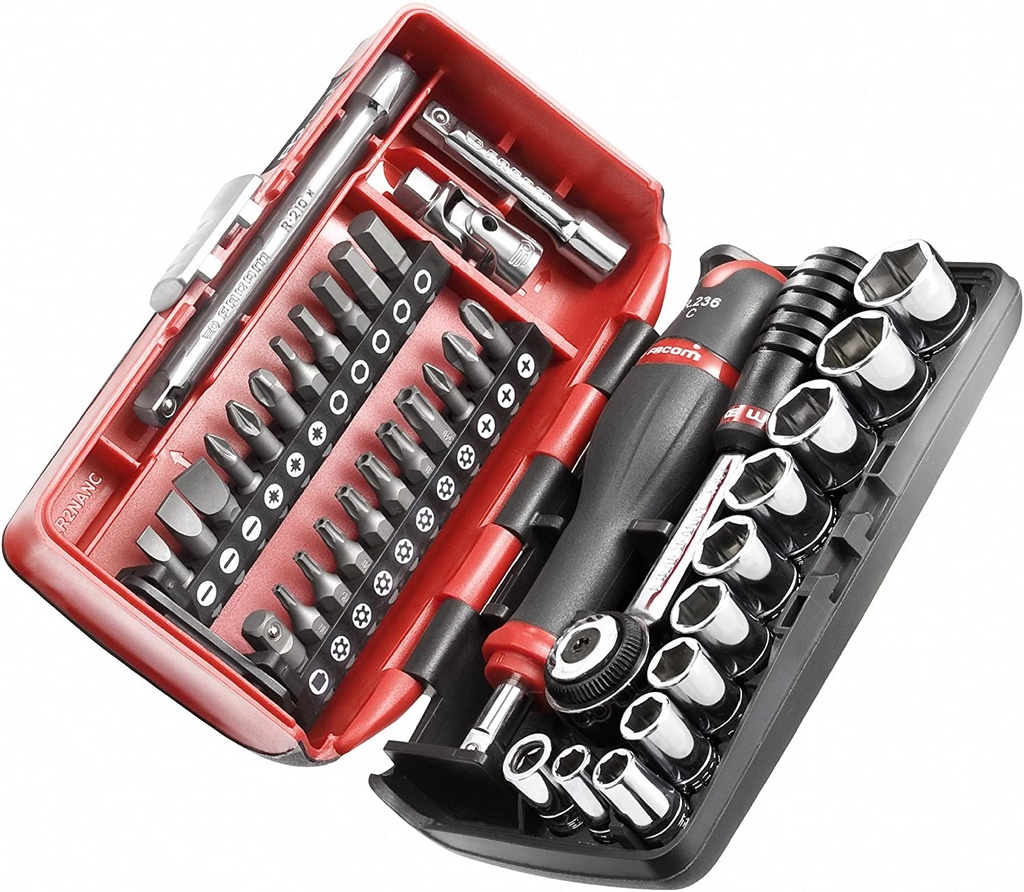

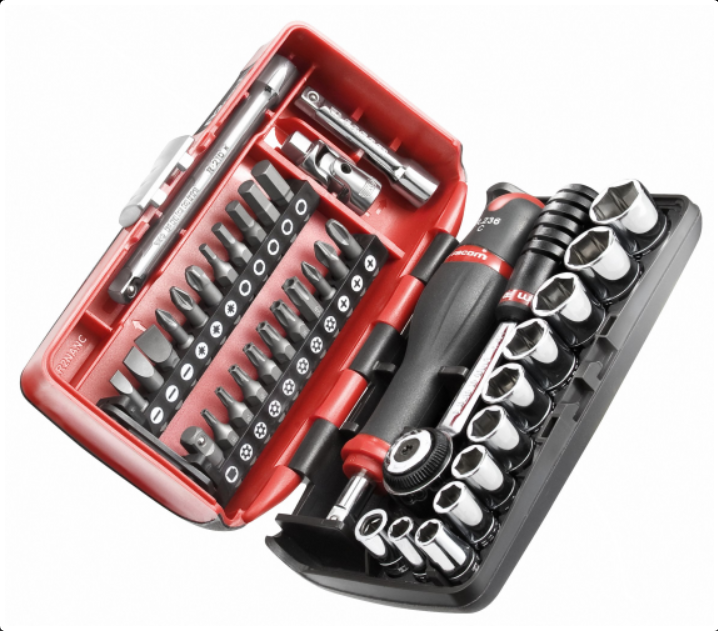

Set of 6-point 1/4" sockets - metric - with ratchet, screwdriver, lengtheners and bit set. As Facom: R2NANO. Open article. Per set.

Fit

Includes:

  • 1 x 1/4" 'Hand-palm' ratchet - R.161.
  • 10 x 1/4" 6-point metric sockets : R.05.5 - 06 - 07 - 08 - 09 - 10 - 11 - 12 - 13 - 14 mm.
  • 21 x 1/4" series 1 bits - L 25 mm:
    Series 1 bits:
    - ED.1T High Perf' bit for Pozidriv® screws : PZ1 - PZ2 - PZ3.
    - EH.1 - Standard bit for hex countersunk screws - metric: 3.0 - 4.0 - 5.0 - 6.0 - 7.0.
    - EP.1T - High Perf' bit for Phillips® screws: PH1 - PH2 - PH3.
    - ES.1T - High Perf' bit for slotted head screws: F4.5 - F6.5 - F8.0.
    - EXR.1 - Standard for Resistorx® screws:
    TT 10 - TT 15 - TT 20 - TT 25 - TT 27 - TT 30 -
    TT 40.
  • 1 x 1/4" socket holder bit - ECR.
  • 1 x 1/4" Universal joint - R.240A.
  • 1 x 1/4" bit holder socket with standard locking pin - R.235.
  • 1 x 1/4" short screwdriver handle - R.236C.
  • 2 x 1/4" standard extension L 55 mm - L 100 mm.
  • Empty case: BV.NANO

Function

Set for easy tightening and loosening metric bolts. Bit set provides adaptation to various common screws.
