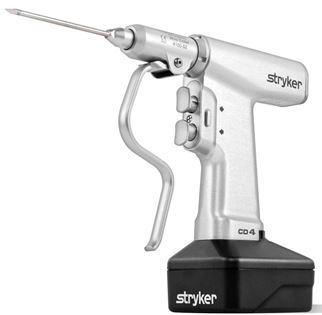

SURGICAL DRILL (Cordless Driver 4) +accessories

• 1 x Cordless Driver 4 Handpiece ref. 4405000000
• 1 x Synthes Drill ref.4100110000
• 1 x Synthes Reamer ref.4100210000
• 1 x Sagittal Saw Attachment ref.4100400000
• 1 x Drill with Jacobs chuck (Ø 6,35mm = ¼ inch) ref. 4100131000
• 1 x Reamer with Jacobs chuck (Ø 6,35mm = ¼ inch) ref. 4100231000
• 1 x Pin Collet ref.4100125000
• 1 x Hudson Modified Trinkle Reamer ref. 4100235000
• 1 x Battery Charger (system 7) ref.7110120000
• 1 x Non-Sterile (Aseptic) Small Battery ref. 722211000
• 1 x Small Transfer Shield ref. 7222130000
• 1 x Aseptic Battery Housing CD3-4 ref. 7222120000
• 1 x Sterilisation Tray ref. CMNETH

• Operating Cycle:
• Forward / back running: cycle of 5 times 1 min running/ 4 min off , with 2 h break
• Operating in oscillation mode: cycle of 5 times 15 sec running /15 sec off, with 90 min break
• Operating with sagittal saw tip: cycle of 4 times 10 sec running / 20 sec off, with 90 min break
• Speed:
• Drill Position: 1500 tr/min
• Reamer Position : 303 tr/min
• Couple:
• Drill Position: 3,3 Nm
• Reamer Position: 15,7 Nm
• Motor cannulated: 4,0 mm
• Double trigger with forward, backward, alternating mode
• Protection rating against penetration: IPX 0 (not water resistant)
• Internal power supply:
• 9,9 V (DC) battery pack by Smart Life Stryker (lithium-ion)
• 9,6 V per battery pack System 6 (nickel-cadmium)
• Battery life: 20 min under continuous use with Lithium-Ion
• Operating conditions:
• Temperature: 10° to27°C
• Atmospheric Pressure: 700 to 1060 hPa
• Relative humidity: 30 to 75 %

• UN3481 Lithium ion batteries contained in equipment
• Class: 9
• Packing Instructions: 967 Section II
• The label must include the UN code of the battery + an emergency number to contact in case of an incident
• Limit per package:
• Pax A/C (Passengers & Cargo Aircraft) = 5 kg
• CAO (Cargo Aircraft Only) = 5 kg

Cleaning / Washing: no not immerse

Sterilisation: autoclavable at 134°C

Always remove the battery before sterilisation in the autoclave.

(Cf Introduction: Disinfection and sterilization in the field)

Periodic maintenance:

• Before each use: Inspect, test and activate the handpiece to ensure proper operation.
• Check that no parts are loose or missing.
• Check the free movement of all moving parts.
• Pay attention to any abnormal noise or vibration and note the operating speed.
• Every 3 months: Try the tip of sagittal saw with the handpiece for one minute to determine the operating temperature. If the distal end and the body of the piece are heated to an uncomfortable temperature to touch 43.3°C, send the handpiece and the tip to ASS .
• As needed: If the operation of the type of tips chuck or keyless freezes, apply a specific oil for surgical instruments on the jaws of the tip. Wipe off excess oil
• As needed: If the handpiece release button on the wireless engine 3 freezes, apply a specific oil for surgical instruments to the handpiece.

For detailed information on maintenance and sterilization of the device, refer to the manual supplied with it.

• Temperature: -20 to 40°C
• Relative humidity: 10 to 75%
• Atmospheric pressure: 500 to 1060 hPa
