HAEMATOLOGY ANALYSER DRY (QBC)

Removed as MSF Standard in 2021.

POC heamatology analyzer will be replaced by WBC Diff and Sysmex only if manual platelet count can not be done the equipment will be considered.

Definition

The QBC Autoread Plus System is based on electro-optical linear measurements of the layers of packed blood cells (Quantitative Buffy Coat) in a haematocrit type tube. It provides a 9 parameter haematology profile of centrifuged capillary and venous blood.

The QBC tubes are internally coated with all the necessary reagents including acridine orange fluorochrome stain and anticoagulants (not present in venous tubes) to allow for measurements to take place.

A precision float is inserted into each tube to expand the buffy coat.

After sample collection in the QBC tube it is centrifuged at approx 12,000 rpm for 5 minutes. This separates blood cells into bands based on different densities allowing for the measurement of the 9 parameters described below.

Specifications

Some restricted information has been hidden. Sign in to see this information

Components

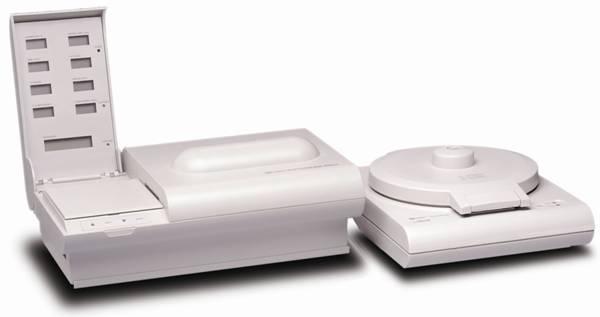

QBC Autoread Plus Haematology System, ref. 428605 comes with:

    • QBC Autoread Plus analyser ref. 429576
    • QBC capillary centrifuge ref. 425740
    • USB cable ref. 421550
    • Pipetter with AccuTube spacer ref. 424225
    • Accutube starter kit
    • Software catridge ref. 421923
    • Workstation ref. 424226
    • Calibration check rod ref. 42613
    • Pipetter barrel ref. 421705
    • QBC Power pack ref. 424590
    • Line cords for 120/230 V, 50/60 Hz operation
    • Forceps
    • Small screw driver for adjusting displays, ref. R3322
    • Operating manual, ref. 424593

Technical specifications

Autoread plus analyser ref. 429576

  • Supplied with software cartridge
  • Sample volume: 70 µl
  • Operating ranges:
    • Haematocrit: 15 - 65%
    • Haemoglobin 5.0 - 20.0 g/dl
    • Platelet Count 80 - 600 (× 109/l)
    • WBC Count 2.0 - 30.0 (× 109/l)
    • Granulocyte Count 0.5 - 29.7 × 109/l (over a WBC of 2.0 - 30.0 × 109/l)
    • Granulocyte Count in percentage 1 - 99%
    • Lymphocytes / Monocytes Count 0.5 - 29.7 × 109/l (over a WBC of 2.0 - 30.0 × 109/l)
    • Lymphocytes / Monocytes Count in percentage 1 - 99%
    • MCHC (mean corpuscular hemoglobin concentration) 25.0 - 37.3 g/dl
  • Power switch: controls and cuts the +12.5V and +20V supplies, the +/- 16.5V supply being switched off electronically by cutting the 12.5V supply to the logic circuits

QBC capillary centrifuge ref. 425740

  • 20 QBC tube slots
  • Rotates at 12,000 rpm

USB cable ref. 421550

  • 6-feet = 1.8 m
  • connection between Autoread Plus analyser to external USB-compatible printer

QBC pipetter with AccuTube spacer ref. 424225

  • Pipetter used with the AccuTube to draw the correct amount of blood into the tube for testing
  • QBC AccuTube Pipetter Spacer: attached to the pipetter to draw the correct amount of blood during venous sampling, ref. 421706

AccuTube starter kit, part code: 3406-300-000

Software cartridge ref. 421923

  • Serves as the central processing unit and provides USB printer capacity for the Autoread Plus analyzer

Workstation ref. 424226

  • Plastic workstation with about 100 different sized tubes wells and a notched and numbered front rack for the centrifuged QBC tubes
  • Facilitates the preparation and storage of blood collection and centrifuged QBC tubes

Calibration check rod ref. 424613

  • Coded metal carrier rod to calibrate the Autoread Plus

Power packs ref. 424590

  • Supplies direct current (D.C.) voltages to the Autoread Plus analyser (including U.S. and European line cords for 120/230 V, 50/60 Hz operation)
  • Power supply: 90-265 VAC, 50-60 Hz, 170W
  • Incorporates a conventional flyback switching design with four individually regulated D.C. outputs: 12.5VDC, 20 VDC, 16.5VDC, -16.5VDC

Dimensions

Autoread Reader (analyser)

  • W x D x H: 34.3cm x 24.13 cm x 10.2 cm
  • Weight: 3.6 kg

Power pack

  • W x D x H: 17.8cm x 9.5 cm x 8.9 cm
  • Weight: 2.5 kg

To be Ordered Separately

  • QBC Autoread Plus Accutubes (box of 100) ref. 423406. AccuTubes can be used for capillary samples from a finger or heel stick, as well as venous blood samples.
  • QBC Autoread Plus Haematology synthetic controls double ref. 424307
  • lint free tissue (synthetic controls only)

Instructions for use

Follow operational/ users manual

Precautions for Use

Secure all biomedical electrical devices in the laboratory. Contact your biomedical referent to define the best option.

Failing that, use a UPS double conversion for the electrical protection of the apparatus (see related articles below).

Storage

  • Operating temperature: between 20°C and 37°C
  • Storage temperature: between -20°C and 60°C
  • Operating relative humidity: between 10% and 95% non-condensing

MSF requirements

A reagent free haematology analyser that allows a 9 parameter haematology profile of centrifuged capillary and venous blood.
