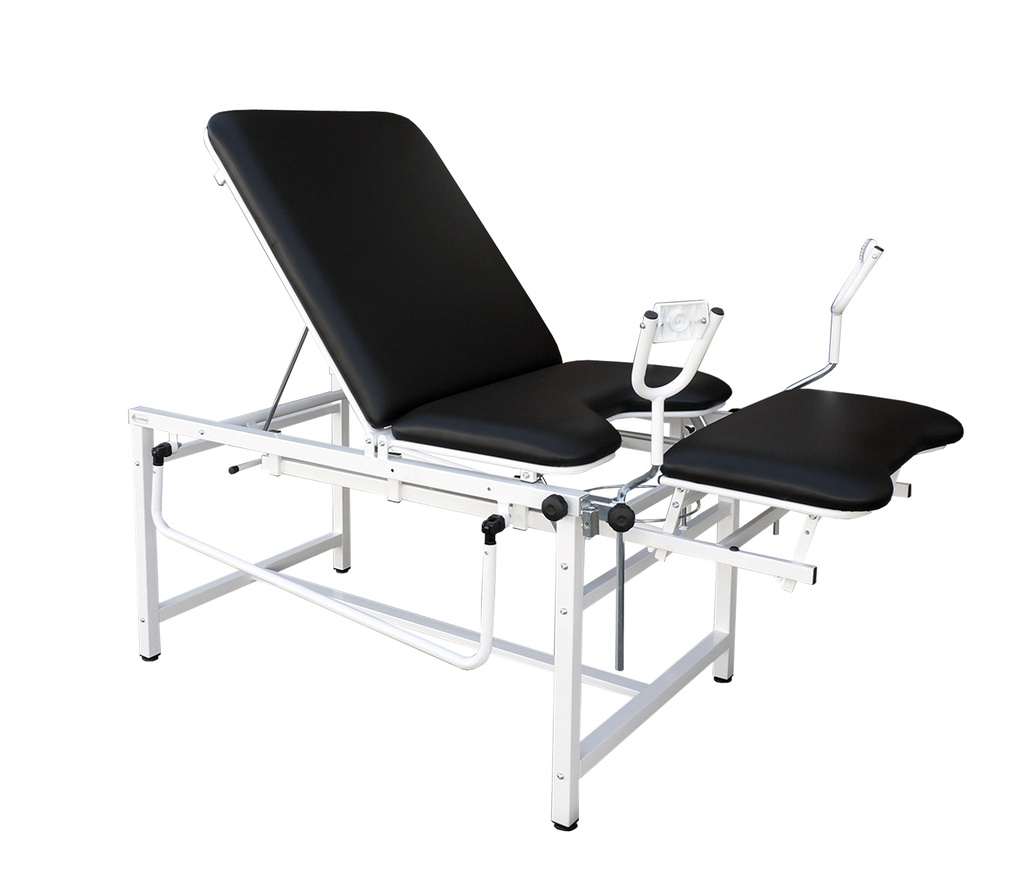

TABLE, DELIVERY

Definition

A manually-operated, adjustable table designed to support a woman's body in an appropriate position during labour and delivery and in other examination/treatment procedures related to pregnancy.

This device will typically include, leg holders (stirrups), traction handles, a receptacle for afterbirth.

Synonym

obstetrical table

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

Table especially designed for deliveries at MSF context.

  • Welded Epoxy coated steel tubular frame
  • High density coated vinyl foam cushions (ideally 25 kg/m³):
    • covered with fire-retardant, cleanable upholstery (laminated fabric class 1 IM cover)
    • thickness: 5 cm
    • dismountable
    • Welded seams to avoid liquid migration, and placed under the tubular frame whenever possible.
  • 3 jointed sections:
    • back rest , with adjustable sitting angle
    • seat with adjustable Trendelenburg's position. Demi-curved cushion with a large radio to facilitate body liquids collection.
    • entirely foldaway or removable leg rest that can be used simultaneously with the foot rest
    • foot rest accessory (ref. C110806) to let the patient push. Made on rubber and metal structure that is fixed to the frame by an hexagonal tube and a wheel. Adjustable in height and width.
  • Extra pillow cushion 80x5 cm (space between two padded parts)
  • Removable side rails (ref. C110082) to let the patient grip
  • Body fluids collection bowl under the seat rest with 3.5l capacity that can slide in and out.
  • Single step - ref. 02.850.00
  • Dimensions:
    • Height: 80 cm
    • Width: 80 cm (backrest and seat)
    • Back length: 90 X 80 cm (upholstered part only) / 93 X 80 cm (including frame)
    • Seat length: 46 X 80 cm (upholstered part only) / 49 X 80 cm (including frame)
    • Leg rest length: 40,5 X 69 cm (metal frame is under the upholstered part therefore it has no encumbrance)
    • Total length: 185 cm

Packaging & Labelling

Delivered dismantled in a box

Supplied with the Article

  • 1 pair of leg supports
  • 1 stainless steel pan, entirely foldaway under the table
  • 1 stepladder, independent from the table (optional)
  • Extra screw/nuts
  • Instructions for Use

To be Ordered Separately

  • Straps (leg holders) ref. 02.2856.05

Not required articles, but purchasable in case of need:

  • Handles ref. C110801
  • Shoulder rest ref. C110803

Instructions for use

Protect the cushions with a surgical drape and a rubber drawsheet (see related articles below).

Place the table on a level floor.

The gas strut allowing the Trendelenburg's position is easily replaceable in case of breakdown.

Maintenance

After each use, the metal frame and the cushions must be cleaned and disinfected with a detergent/disinfectant solution for surfaces /non-invasive medical equipment. Prepare use-solution in concentration required. Always read the label and product information before use. Do not mix with other products. Make sure to wet the surfaces completely, use a wipe or towel, keep them wet for the whole exposure time.

MSF requirements

Delivery table to equip a maternity unit:

  • solid and stable
  • allows safe Trendelenburg's position and lateral decubitus position (unlike the gynaecological examination table)
  • offers the indispensable comfort for long-lasting medical procedures
