1. All Products
  2. PHDWHING - Hinge
  3. HINGE double action, 40kg max, pair
Public Pricelist

HINGE double action, 40kg max, pair

https://unicat.msf.org/cat/product/67460
NST PHDWHINGD40

Valid Article

Former Code(s): CBUIZFR0029
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

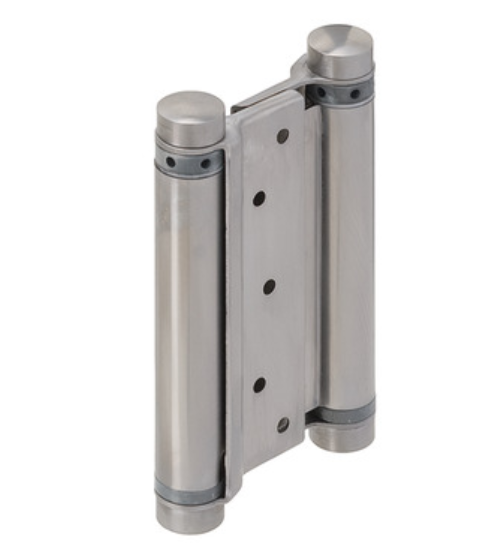

HINGE double action, 40kg max, pair

Form

  • Material: Available in stainless steel, nickel-plated steel, or galvanized steel for enhanced durability and corrosion resistance.
  • Dimensions: Each hinge measures 150mm in height with a knuckle diameter of 26mm.
  • Finish: Options include matt stainless steel, nickel-plated, or galvanized finishes to suit various aesthetic preferences.
  • Configuration: Supplied as a pair, designed for flush interior doors.

Fit

  • Mounting: Suitable for surface mounting on wooden frames. Compatible with both DIN left and DIN right hand use.
  • Compatibility: Designed for flush wooden interior doors with a thickness of 34-40mm. Ideal for doors up to 2500mm in height and 735mm in width.
  • Adjustment: Features adjustable tension settings to control the closing speed and force.

Function

  • Operation: Allows doors to swing in both directions (inward and outward) with a self-closing mechanism.
  • Load Capacity: Supports a maximum door weight of 40kg per pair, ensuring reliable performance for medium-duty applications.
  • Applications: Commonly used in commercial and residential settings, such as kitchens, restaurants, and offices, where bi-directional door movement is required.
  • Safety: Includes built-in safety features to prevent overextension and ensure smooth, controlled door movement.
