CHLORINE PRODUCTION (Maxi-Wata) set

Form

Maxi-WATA™ unit.

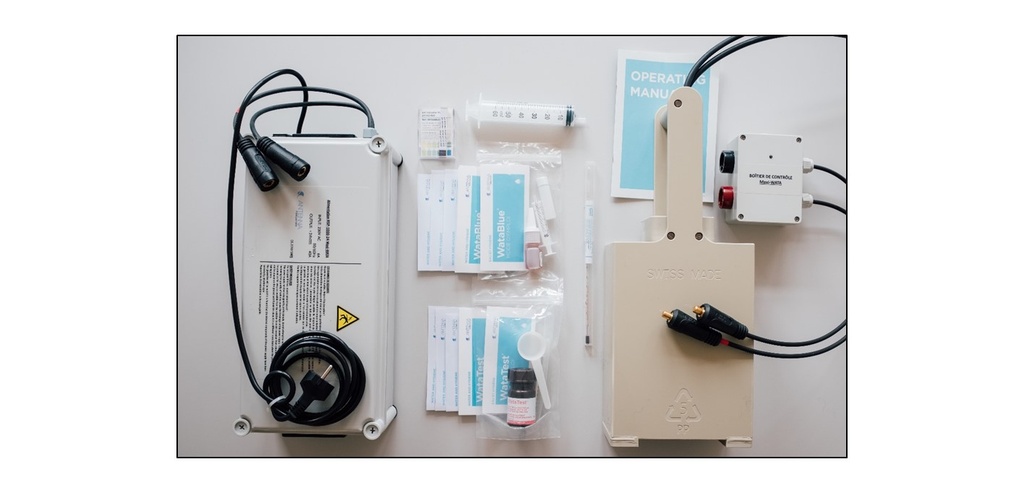

Content:

  • 1 control box
  • 1 power supply 24V/40A
  • 1 syringe of 50ml
  • 5 kit WataTest™
  • 5 kit WataBlue™
  • 1 pH test
  • 1 user manual

Specifications:

  • Production time: 4h30
  • Active chlorine volume (6g/l): 60l
  • Drinking water application: can treat up to 240000l
  • Disinfection application (per cycle):
    - 60l of 0.6% solution
    - 180l of 0.1% solution
    - 600l of 0.05% solution
  • Max. number of cycles over 24h: 5
  • Nominal power rating: 720W
  • Electrical power supplied: 24V/40A
  • Dimensions: 340 x 180 x 110 mm
  • Weight: 10 kg

Fit

-

Function

This device produces a 0.6% concentrated sodium hypochlorite solution (or 6 g of active chlorine per litre) from brine. It uses the electrolysis process and requires only clear water (< 5NTU) and salt. It is an interesting alternative to MSF's standard chlorinated product (Nadcc / HTH) and allows the mission to be autonomous and free from transport and storage constraints.
