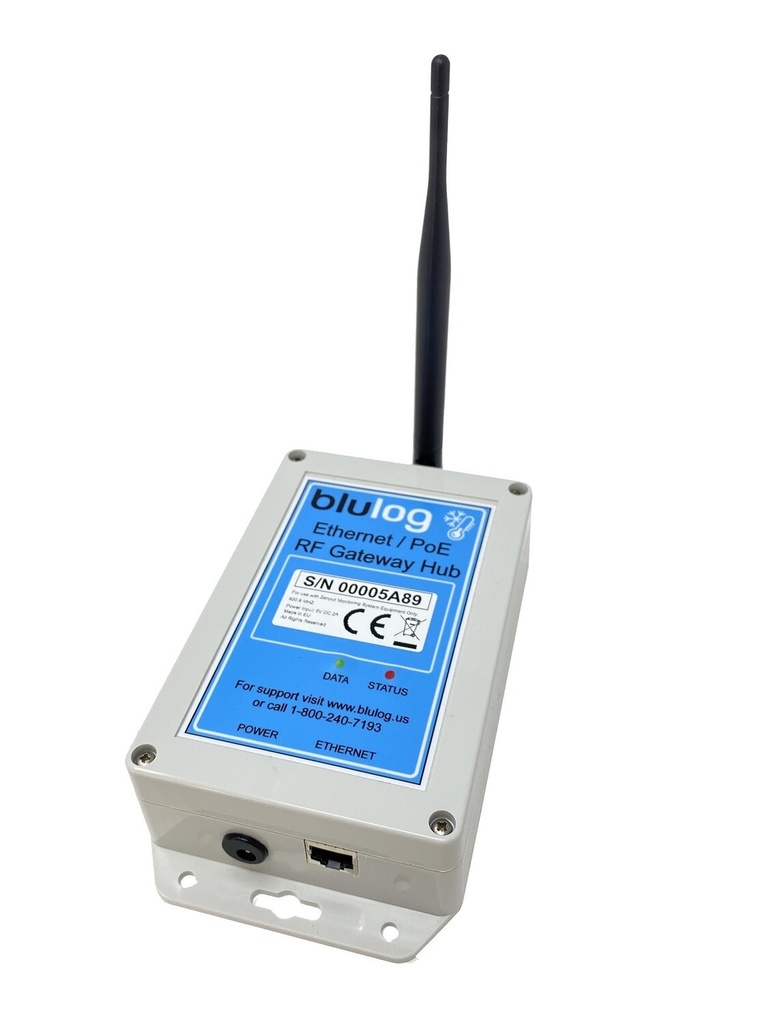

(Blulog remote system) HUB RF/2G/SMS, for EU/AFR/Middle East

https://unicat.msf.org/cat/product/68639
NST PCOLMONISBHE

Valid Article

Former Code(s): PCOLZBE0233
UN3481
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

(Blulog remote system) HUB RF/2G/SMS, for EU/AFR/Middle East

Form

Dimensions : 180mm x 100mm x 45mm

Included :

  • AC/DC Adapter
    • Type C (euro)
    • INPUT : 100 ~240V AC 50/60 Hz
    • OUTPUT : 5V DC 2A
    • 5.5mm x 2.1mm connector
  • Antenna
  • Ethernet cable
  • International SIM card (valid only for the countries listed here: https://1nce.com/en/coverage/)

Closed article: Bluelog. Per piece.

WARNING:

  • item classified as hazardous good by IATA, UN3481 - Lithium ion batteries contained in/with equipment, section II
  • Not restricted as per special provision IMDG 188

Fit

  • communication with loggers : Radio 869.0 MHz
  • network communication : BT, GSM (2G), Ethernet
  • range in building: ~30 -100 meters
  • power source : 5V DC power adapter or internal battery or PoE (Power over Ethernet)
  • functioning temperature: -20°C to +60°C

One HUB per storage location is enough as long as the loggers are within a close radius (<10m for fridges, <30m for open space) from it. Otherwise an additional HUB is recommended.
There is no limit to the number of loggers that can be paired to a HUB

Function

The HUB collects the data from each logger in its proximity via radio transmission and relays it to the server via Ethernet or 2G. The SIM card as well as the battery ensure a continuity of signal output during power cuts, or ethernet connectivity cutouts.

Transport Dangerous Goods

WARNING:

For air transportation this item is regulated, as it is classified as hazardous good by IATA:

  • UN3481 Lithium ion batteries contained in equipment
  • Class: 9
  • Packing Instructions: 967 Section II
  • The label must include the UN code of the battery + an emergency number to contact in case of an incident
  • Limit per package:
    • Pax A/C (Passengers & Cargo Aircraft) = 5 kg
    • CAO (Cargo Aircraft Only) = 5 kg

For maritime transport: not restricted as per special provision IMDG 188.
