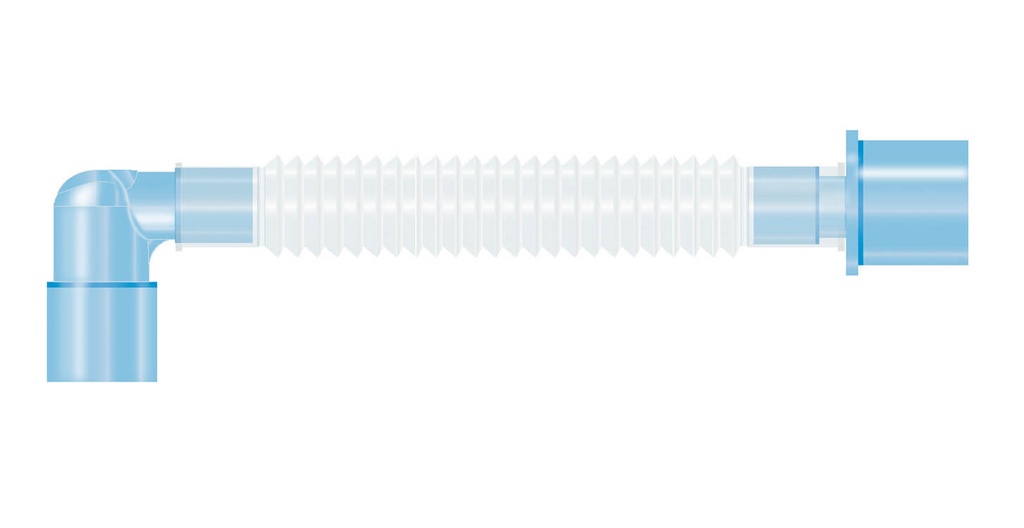

CATHETER MOUNT, reusable, SI, with elbow, 150mm

https://unicat.msf.org/cat/product/68703
STD EANECATM2R-

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
R020201 - Fixed catheter mounts
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

CATHETER MOUNT

Definition

A device used to connect a respiratory circuit (e.g., an anaesthesia breathing circuit or ventilator breathing circuit) or a resuscitator to an endotracheal (ET) tube, to enable increased mobility at the patient end of the circuit or connections.

Synonym

Extension tubing

Specifications

Technical specifications

  • Flexible silicone tube

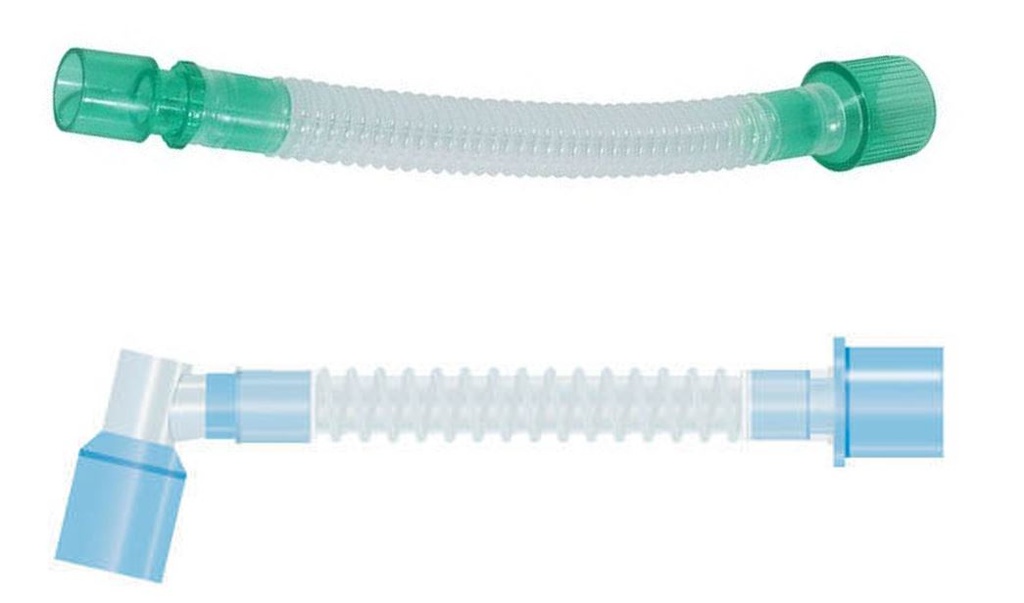

  • Straight (EANECATM1R-) or with elbow (EANECATM2R-)
  • No suction port
  • Length: 150 mm
  • Standard connection: 15/22 mm:
    • distal end: female 15 mm internal Ø connection (with the endotracheal tube) / 22 mm outer Ø
    • proximal end: male 15 mm external Ø connection (with the valve).
  • Autoclavable
  • Non sterile, reusable

Instructions for use

Reserved for anaesthetists and intensive care units.

Some restricted information has been hidden. Sign in to see this information

Maintenance

Must be pre-disinfected, cleaned and sterilized by steam autoclave after each use.

(Cf Introduction: Disinfection and sterilization in the field)

MSF requirements

Optional part in a respiratory circuit, which is usually placed between the endotracheal tube and the expiratory valve in order to increase mobility at the patient end of the circuit.

Catheter mount that can be disinfected or sterilized.
