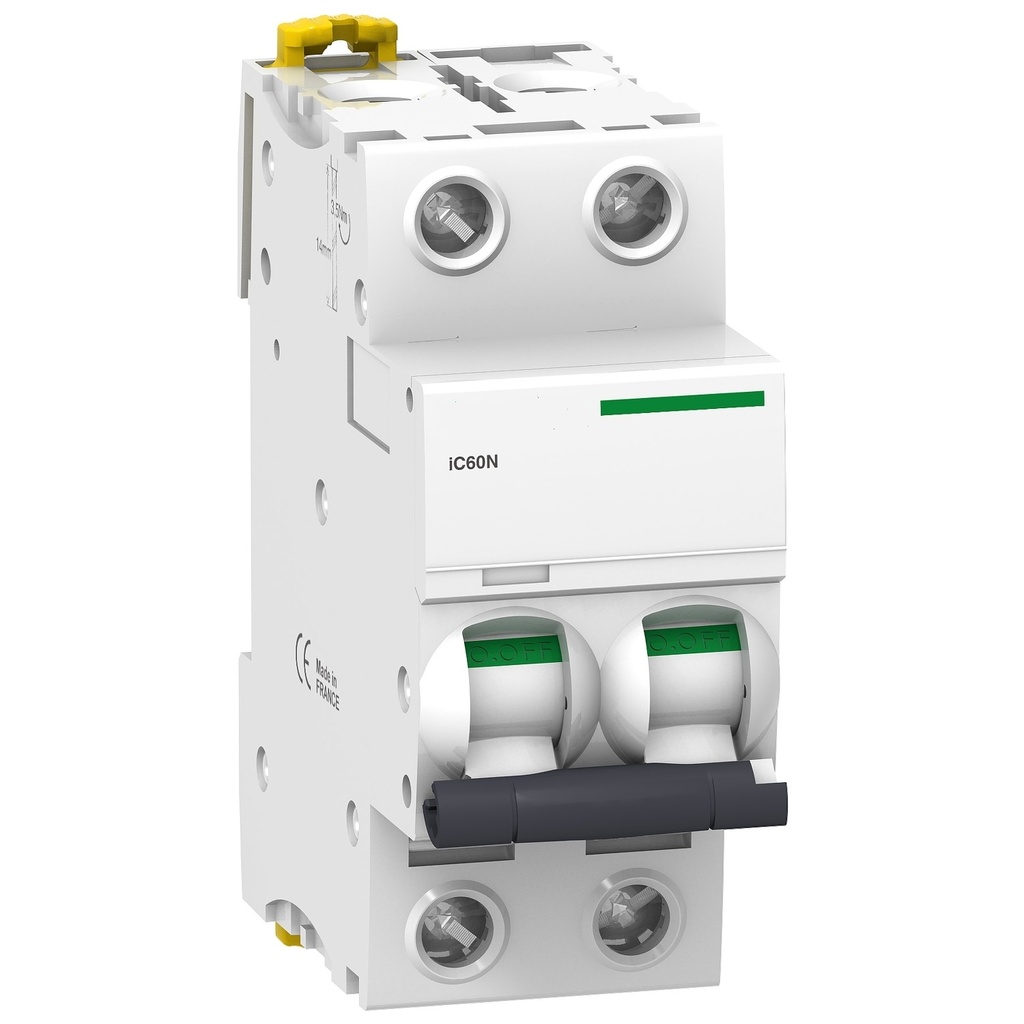

CIRCUIT BREAKER MCB (S-A9F79216) C-curve, 16A Icu6kA, 2P mod

https://unicat.msf.org/cat/product/68963
STD PELEMCBS2C16M

Valid Article

Former Code(s): PELEMMCB2C16M
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

CIRCUIT BREAKER MCB (S-A9F79216) C-curve, 16A Icu6kA, 2P mod

Form

  • Circuit breaker 2 pole, 16 amps, B Curve 6 kA Icu conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz. Thermal-magnetic.
  • Single terminal, top or bottom rigid wire(s) 1-25mm² max
  • Single terminal, top or bottom flexible wire(s) 1-16 mm² max
  • Operational temperature: -35 +70 °C
  • Height: 85mm
  • Width: 36mm
  • Depth: 78.5mm
  • Weight 0.25kg

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an overcurrent.

A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
