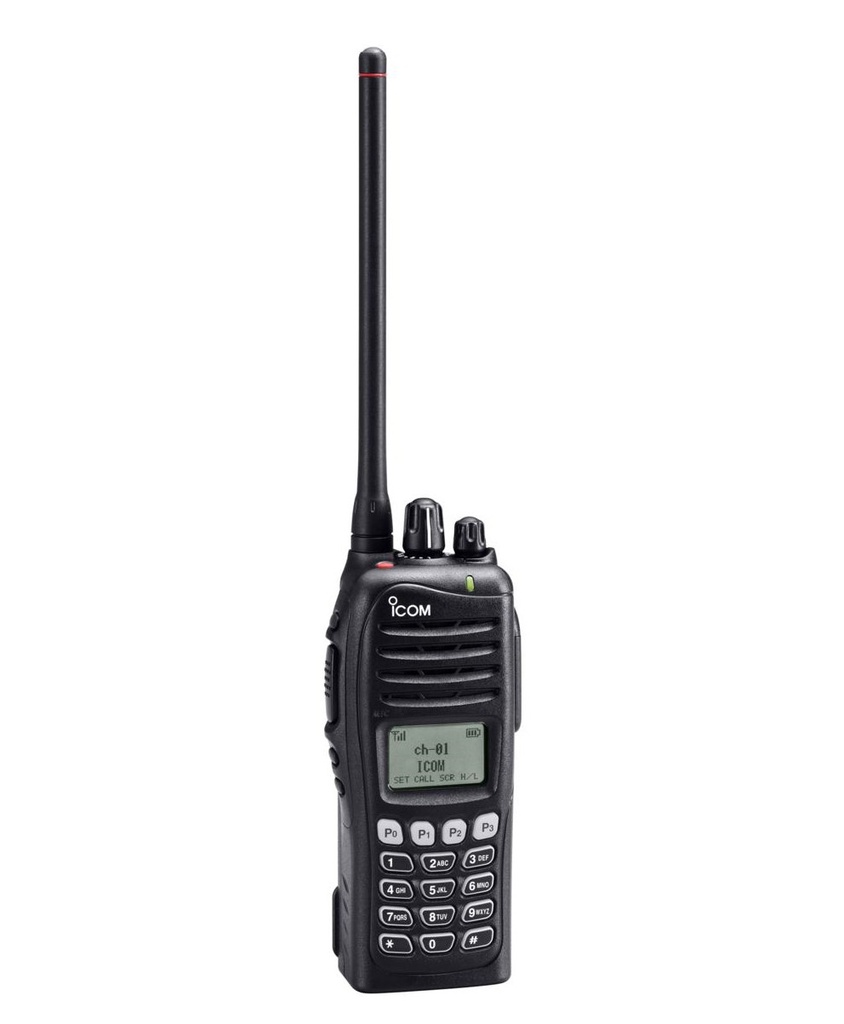

VHF TRANSCEIVER (Icom IC-F3262DT) + accessories
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
VHF TRANSCEIVER (Icom IC-F3262DT) + accessories
Definition
Portable wide-band VHF radio, programmable, intended for short-distance voice communications. The Icom IC-F3262DT handheld is a radio series that combines a rugged, waterproof and dustproof construction.
Specifications
IP67 waterproof and dust-tight protection when used with the BP232WP battery.
IC-F3262DT/DS | |||
Frequency coverage | 136–174 MHz | ||
Number of channels | 512 channels/128 zones | ||
Channel spacing | 25/20/12.5/6.25kHz | ||
Type of emission | 16K0F3E/14K0F3E/8K50F3E/4K00F1E/F1D | ||
Current drain | Tx High (at 5W) | 1.7A | |
Rx | Rated output | 550mA | |
Standby | 160mA | ||
Dimensions (W×H×D) | 53.5×142.7×39.5 mm | ||
Weight (approx.) | 410g (with BP-232WP, MB-94R & FA-SC55V) | ||
Transport Dangerous Goods
WARNING:
For air transportation this item is regulated, as it is classified as hazardous good by IATA:
- UN3481 Lithium ion batteries contained in equipment
- Class: 9
- Packing Instructions: 967 Section II
- The label must include the UN code of the battery + an emergency number to contact in case of an incident
- Limit per package:
- Pax A/C (Passengers & Cargo Aircraft) = 5 kg
- CAO (Cargo Aircraft Only) = 5 kg
For maritime transport: not restricted as per special provision IMDG 188.
Supplied with the Article
1 PCE. (ICOM HANDSET IC-F3262 VHF INCL: ANTENNA / BATTERY BP-232WP LI-ION / BELT CLIP MB-94)
Instructions for use
- Radios are preset to standard frequencies for immediate use.
- Always inquire about local authorizations to be obtained.
- Consult your local regulations and license for frequency restrictions
- Never carry a handset by its antenna, as it is very fragile.
- NEVER transmit without an antenna.
- The handset range depends on environmental conditions: the maximum is 8 km.
