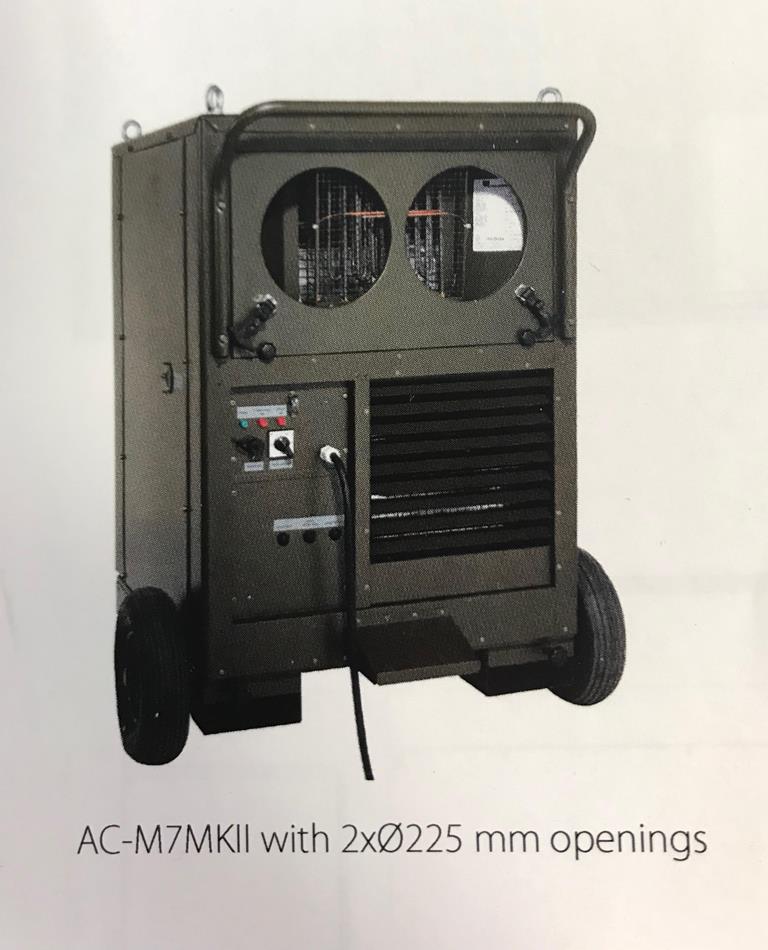

AIR COND. (Dantherm AC-M7MKII) cool/heat 7.6/7,2kW, 2xØ225mm

Form

Portable air conditioning unit.

Technical specifications:

  • airflow: 2500 m3/h
  • refrigerant: R134a
  • nominal cooling capacity: 7.6 kW
  • nominal heating capacity: 7.2 kW
  • power supply: 400V / 3ph / 50 Hz
  • max. power consumption cooling/heating: 3,700/7,700 W
  • max. running current, cooling/heating: 7.2/13 A
  • hoze connection: 2 x Ø 225 mm
  • size (HxLxW): 1150 x 796 x 756 mm
  • weight: 190 kg
  • color: white

Per piece.

Fit

The unit has 2 air supply outlets and 2 air return outlets. Therefore the ducting accessories must include:

- 4 x insulated flexible duct (2 for supply and 2 for return air): CCLIAIRCAMD3

- 2 x non-insulated duct

- 2 x perforated diffuser duct: CCLIAIRCAMD6

- 1 x thermostat: CCLIAIRCAMTR

The two tents that the unit will supply to should be placed close together. It is possible (but not recommended) to extend the ducting by adding additional insulated ducts (CCLIAIRCAMD3).

Function

This air conditioning unit is meant to be used too cool and heat tents.

This specific model, 2 x Ø 225 mm, is meant to cool two seperate tents. The unit is also available in the standard 1x Ø 315 mm version.

It must be placed outside the tents and will recirculate and cool the air inside the tents through supply and return air ducts.
