LIFTING SYSTEM container (260-1730347) 1.75m, 12T, elec.

Form

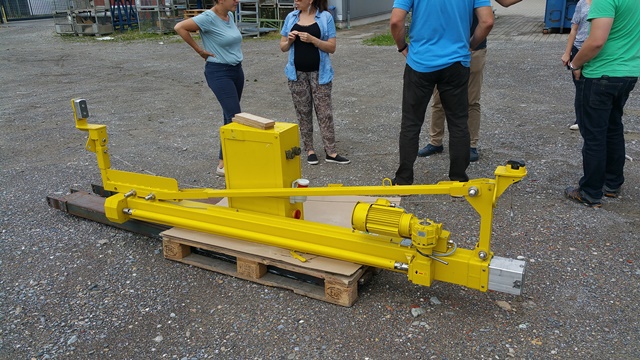

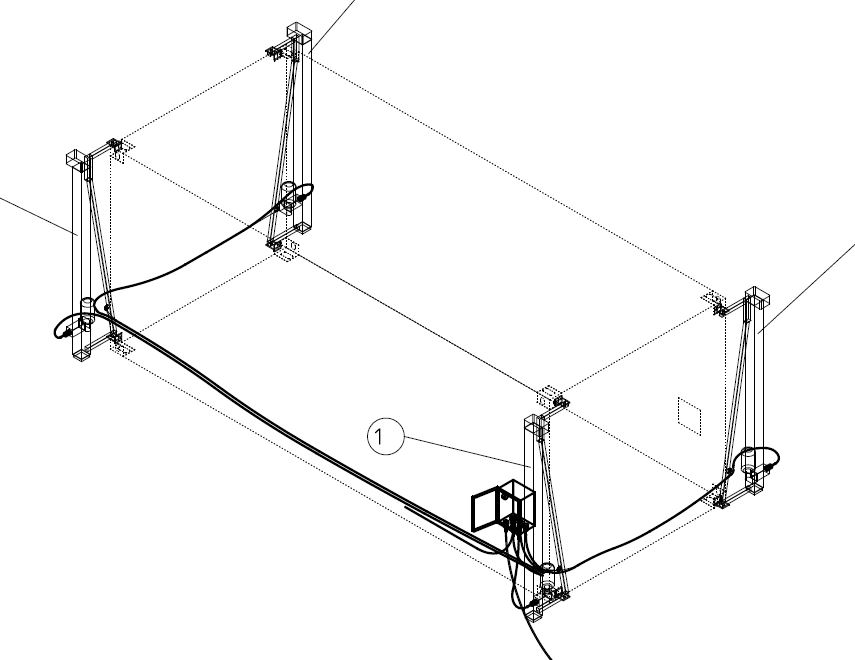

The electrical container lifting system consists of: 4 electrical lifting jacks, 4 supply cables, 1 main supply cable for 24VDC, 1 remote control, 1 hand crank, 4 base plates, 2 connection rods, 1 central control unit.

Fit

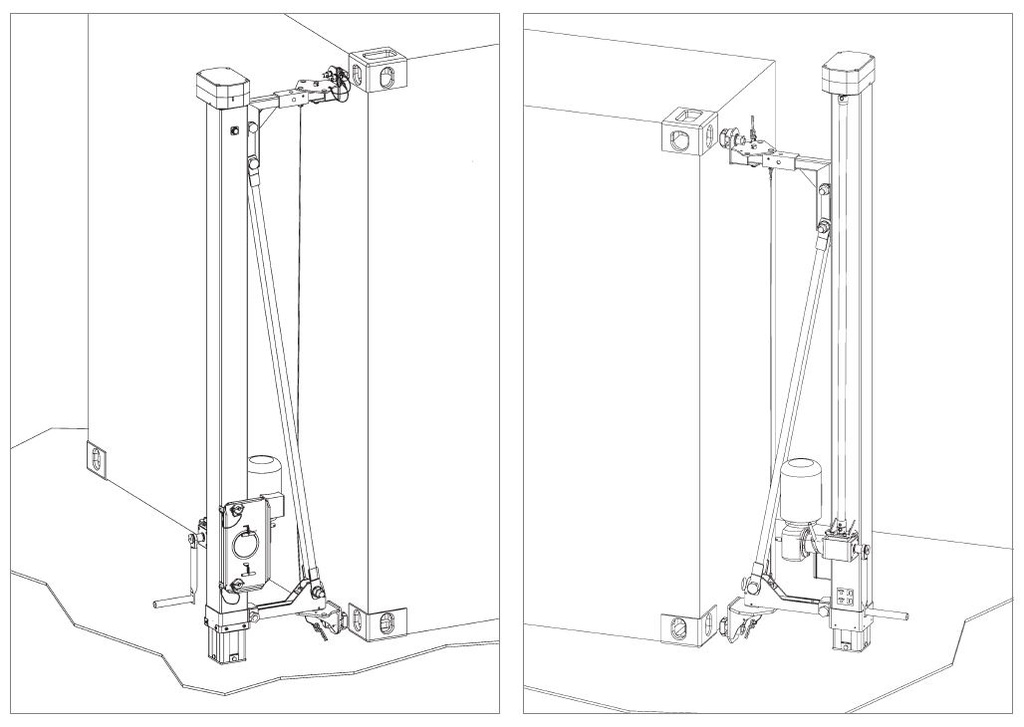

The four electrical jacks of the container lifting system will fit in the ISO locks of the upper and lower corners of any ISO container. Through electrical power the motors will drive the driveshaft and lift the container.

Function

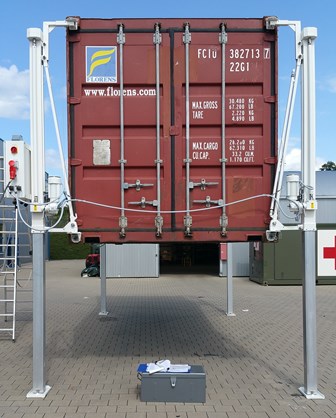

The container Lifting System 260 permits to electrically lift the container above the ground. Each electrical jack is fixed in the ISO lock corners. Each jack is connected through electrical cable to the main control unit. The main control unit allows to operate each jack individually or automatically (the control unit has a ''computer levelling system'', this will calculate how much each jack should extend to make sure that the container (Shelter) will be levelled.
