GROUNDING ROD, copperbonded, 2x1m, extendable
NSL
PELEEARTR20E
Valid Article
Account code:
61120
Last Updated on:
07/11/2024, 17:20:25
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
GROUNDING ROD, copperbonded, 2x1m, extendable
Form

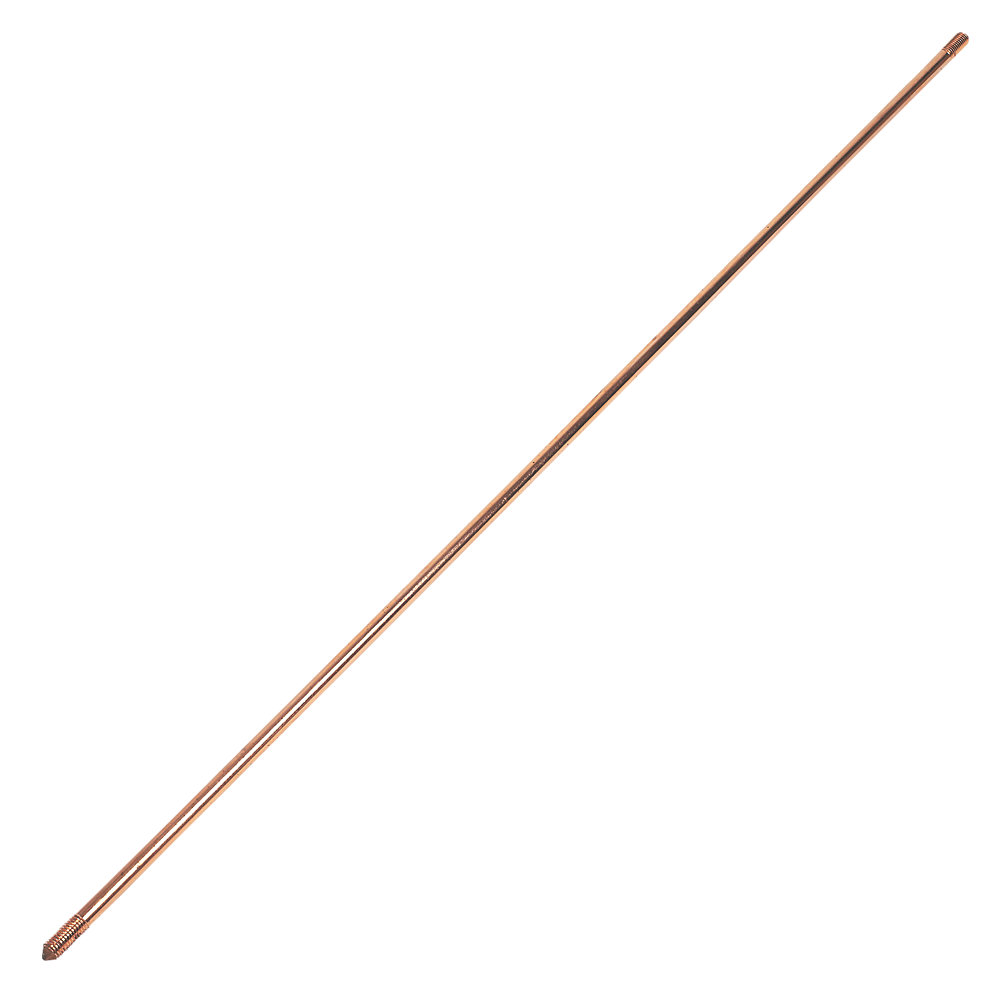

Grounding rod copper clad, Ø14 mm, 1200 mm length, extendable. Thread size 5/8", weight approximately 1.40 kg. Coupling for extending not included.
Per piece.
Fit
Suitable for electrical and telecom installations.
Couplings and ground/earth clamps are compatible, when sized correctly.
Function
Installed in the earth to provide a discharge path for stray voltages and for personnel safety and equipment stability.
Multiple grounding rods can be used in parallel.*
Usually located near panel boards/distribution boards and generators.
*See: 5.5.2. and 5.5.1 EXPLANATION OF THE THREE EARTHING SYSTEMS, MSF– ICRC Electrical Installations and Equipment in the Field: Rules and Tools. Version 0
