  2. (EZ-IO) SET INTRA-OSSEOUS NEEDLE 15Gx25mm+ STABIL.DRESSING
Public Pricelist

(EZ-IO) SET INTRA-OSSEOUS NEEDLE 15Gx25mm+ STABIL.DRESSING

https://medicalguidelines.msf.org/en/node/1999#section-target-3
https://unicat.msf.org/cat/product/74762
STD SINSNEIOKN22

Valid Article

The product is supplied (and stored) sterile, it must remain sterile until its use. Sterile = state of being free from all living microorganisms.
Single use
A single-use device, also referred to as a disposable device, is intended for use on one patient during a single procedure. It is not intended to be reprocessed (i.e., cleaned and disinfected or sterilized).
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
A019011 - Intraosseous infusion and vertebroplasty infusion needles and kits
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
IIa
In Europe, medical material that fulfills the definition of a medical device according to the MDR (Medical Device Regulation) is classified into 4 classes
CT3+
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

INTRA-OSSEOUS INFUSION SYSTEM: EZ-IO Needle set

The intra-osseous needle set is worded and codified by single unit.

Definition

Battery powered medical drill and sterile medical devices needed to perform an intraosseous (IO) infusion (i.e., an infusion directly into the bone's medullary cavity) in children or adults.

Intraosseous infusion is used in emergency care when peripheral vascular acces is difficult, impossible or uneffective; especially for patients for whom immediate vascular access is lifesaving (e.g. patients with shock, severe dehydration, burns or cardiac / respiratory arrest)

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

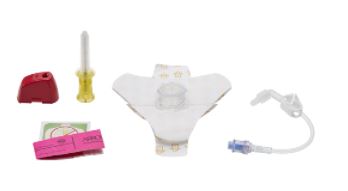

NEEDLE + STABILIZER SET

  • 1 x EZ IO needle, 15G (Ø 1.8 mm)
    • austenitic stainless steel needle (18/8)
    • markings / 5 mm indicating depth, 5 mm of the catheter (at least one black line) must remain visible
    • Luer lock connector
    • with stylet for insertion and protective cap
    • sterile, for single use
    • length of the needle: :
      • ref 9018P: 15 mm long, pink, for patients weighing between 3 to 39kg
      • ref 9001P: 25 mm long, blue, for patients weighing more than 3kg
      • ref 9079P: 45 mm long, yellow, for patients weighing more than 40 kg
  • 1 x EZ-CONNECT extension set
    • adapted to EZ IO PD needle
    • needed to connect the IO needle safely to the infusion set
    • ​with clamp
    • sterile, for single use
  • 1 x security wristband to document date and time of insertion
  • 1 x ADHESIVE DRESSING
    • sterile, single use
    • size : 14.6 cm x 13.3 cm x 3.2 cm
    • latex-free
  • 1 x NeedleVISE 1 port: device for securing the needle after insertion, to be disposed of in a sharps container.

Packaging & Labelling

Sterile peel-open pack for every needle set, including instructions for use.

The sets are packed per 5

Instructions for use

Duration of use:

  • For intraosseous access any time in which vascular access is difficult to obtain in emergent, urgent, or medically necessary cases, for up to 24 hours.
  • For patients ≥12 years old, the device may be extended for up to 48 hours when alternative intravenous access is not available or reliably established.

Care & Maintenance

  • Keep extremities secure to minimize movement.
  • Assess frequently for extravasation, swelling, and optimal flow rate.
  • Ensure site is securely in place, connections are secure, and dressing is clean, dry and intact.
  • Confirm patency/placement prior to and throughout medication and fluid administration.

To remove EZ-IO:

  • remove extension set and dressing
  • attach Luer-lock syringe to the catheter hub and withdraw the catheter by applying traction while rotating clockwise. Do NOT rock or bend the catheter.

Precautions for Use

  • Use moderate steady downward pressure and allow needle set to penetrate the bone, do NOT use excessive force!
