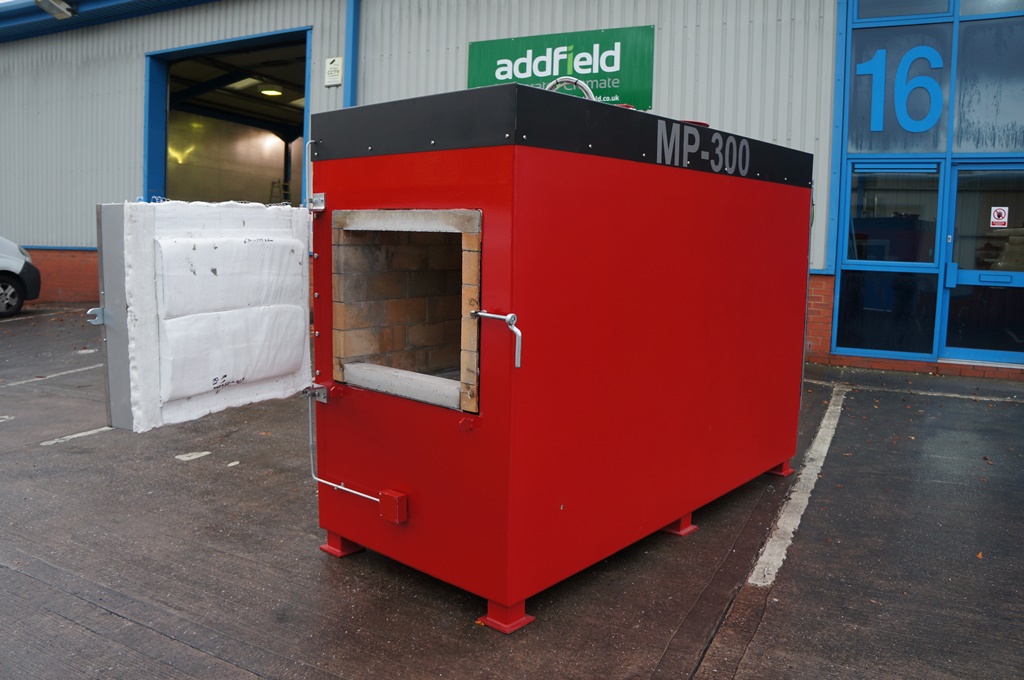

INCINERATOR HTI (Addfield MP-300) diesel, 230V

Form

Stand alone medical wast burner. Suited for medical wet waste (50-100%), blood, drips, human faeces, human organs, human tissues, human limbs, cancer treatment, pharmaceuticals, surgery waste, syringes/needles.

  • Front loading door.
  • Manually loading.
  • Load capacity (batch capacity) 300kg.
  • Burn rate in kg/hour: 50 -75 kg/hour.
  • Recommend Hospital size: 300-500 beds.
  • Standard delivered with 3660 mm of chimney, measured from the floor.
  • Easy ash removal.
  • Two chamber combustion of highly infectious and wet waste.
  • Fully Insulated for increased efficiency.
  • Pre Fabricated 8 and 10 mm robust mild steel casing.
  • Lightweight insulated loading door with tight secured seal.
  • Primary and secondary chamber lining thickness at 221mm , rated at 1750 degrees Celsius.

Primary Chamber:

  • Heavily insulated internal refractory lining. Constructed from high grade refractory brick ensuring a secure self-supporting, interlocking arrangement.
  • Manually opening, securely locking, access door with viewing port.
  • Automatic temperature controlled on-off waste ignition burner complete with internal air fans.
  • Hot Hearth Combustion Burner, temperature controlled on-off, complete with internal air fans.
  • Secondary combustion burner air fans, automatically controlled distribution to their designated area.
  • Two temperature sensor mounting points

Secondary Chamber:

  • Fully insulated internal refractory lining. Constructed from high grade refractory brick and low thermal mass insulation.
  • Secondary chamber burnout burner, temperature controlled on-off complete with internal air fans
  • Automatically controlled integrated combustion burner air fans.
  • Temperature sensor mounting point at the base of the exit flue ensuring the chamber reaches the necessary 1100°C minimum, with a 2 second retention time

Combustion System

The burner system comprises of fully automatic package burners, these burners come complete with the following features:

  • Flame failure controls
  • Adjustable ­flame patterns
  • Integral fuel pump
  • Solenoid valves
  • Integral continuous air fan
  • Fuel sensors

Fit

To be installed in medical facility around the world. Need access to fuel (Diesel) and electricity to operate this machine correctly.

For advice on medical waste management, please do refer to Public health engineering in emergencies, 2nd edition 2010, chapter 6: medical waste management.

Function

Machine to incinerate waste from medical facilities with the help of burning fuel.
