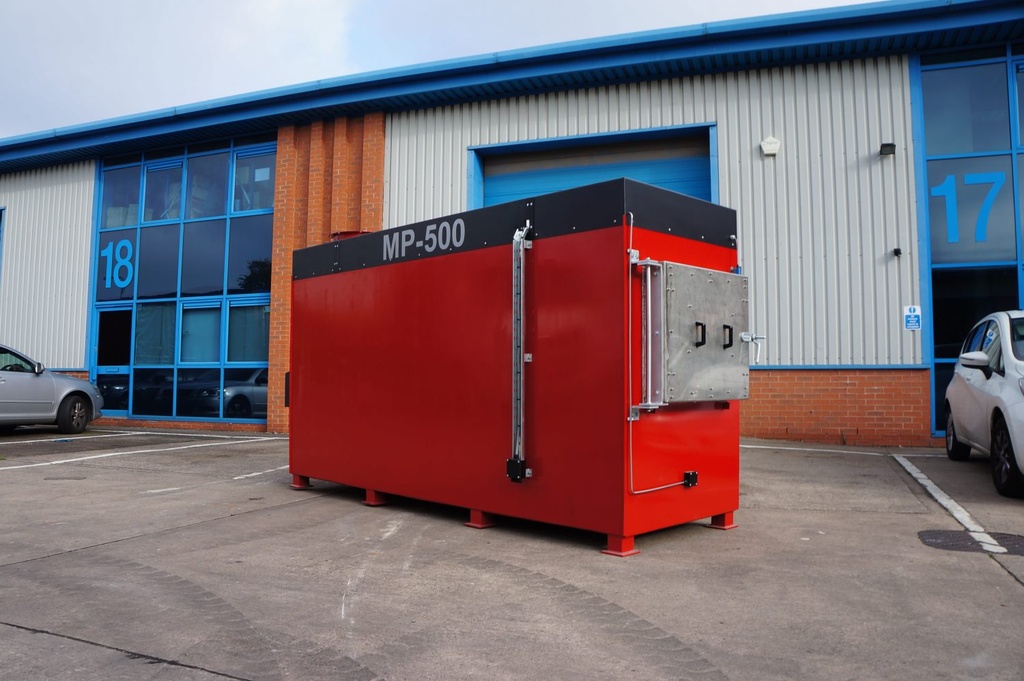

INCINERATOR HTI (Addfield MP-500) diesel, 230V

Stand alone medical wast burner. Suited for medical wet waste (50-100%), blood, drips, human faeces, human organs, human tissues, human limbs, cancer treatment, pharmaceuticals, surgery waste, syringes/needles.

• Front loading door.
• Manually loading.
• Max. load capacity (batch capacity) 500kg.
• Burn rate in kg/hour: 50 - 75 kg/hour.
• Recommended hospital size: 625- 1000 beds.
• load chamber size of 1.13m³.
• Total of 4 burners
• Easy ash removal.
• Two chamber combustion of highly infectious and wet waste.
• Fully insulated for increased efficiency.
• Pre-fabricated 8 and 10 mm robust mild steel casing, seam welded and stiffened/braced where necessary.
• Lightweight resilient refractory fibre insulation door, providing a tight seal, giving excellent thermal efficiency
• Paint finish
• Hot Hearth technology, enabling increased efficiency of incineration by providing additional heating below the chamber, encouraging 360° heat distribution
• Multi layered refractory lining using insulation bricks for improved thermal efficiency
• Primary & secondary chamber lining thickness – 221mm, rated at 1750°C

Primary Chamber

• Heavily insulated internal refractory lining. Constructed from high grade refractory brick ensuring a secure self supporting, interlocking arrangement.
• Manually opening, securely locking, access door with viewing port.
• Automatic temperature controlled on-off waste ignition burner complete with internal air fans.
• Hot Hearth Combustion Burner, temperature controlled on-off , complete with internal air fans.
• Secondary combustion burner air fans, automatically controlled distribution to their designated area.
• Two temperature sensor mounting points.

Secondary chamber

• Fully insulated internal refractory lining, constructed from high grade refractory brick and low thermal mass insulation.
• One secondary chamber burnout burner, temperature controlled on-off, complete with internal air fans
• Integrated combustion burner air fans with automatically controlled distribution to their designated area.
• All combustion fuel pipe work
• All electrical requirements
• One temperature sensor mounting point at the base of the exit flue ensuring the chamber reaches the necessary 850°C/1100°C minimum.

Machine specification

• External LxWxH(mm) 4035x1150x1950/3825
• Internal LxWxH (mm) 2400x675x700
• Chamber volume (m³) 1.13
• Weight (approx. tonnes) 5
• Max Load capacity (kg) 500
• Burn Rate (kg/hr) 50-75
• Thermal Capacity (kW) 520
• Power supply 50/60hz 220-250
• Door Aperture 675x550
• Hot Hearth Principle Double Pass
• Fuel Types Diesel, LPG, N-Gas
• Control Panel AI or PLC
• Insulation board 25mm Super-wool
• Insulation Fire Brick Grade E23
• Fire Brick (Alumina) 42.5%

Controller

• Temperature indication and control of primary chamber
• Temperature indication and control of secondary chamber
• Plant status indicators
• Cycle status indicators
• Fault status indicators
• Operator interface
• Data logging
• USB port

To be installed in medical facility around the world. Need access to fuel (Diesel) and electricity to operate this machine correctly.

For advice on medical waste management, please do refer to Public health engineering in emergencies, 2^nd edition 2010, chapter 6: medical waste management

Machine to incinerate waste from medical facilities with the help of burning fuel.

Always consult your Watsan advisor when purchasing an incinerator.
