INCINERATOR HTI (Addfield MP-200) diesel, 230V

https://unicat.msf.org/cat/product/76116
NST CWASIADDMP2I-

Valid Article

Former Code(s): CWATINCIP20
CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

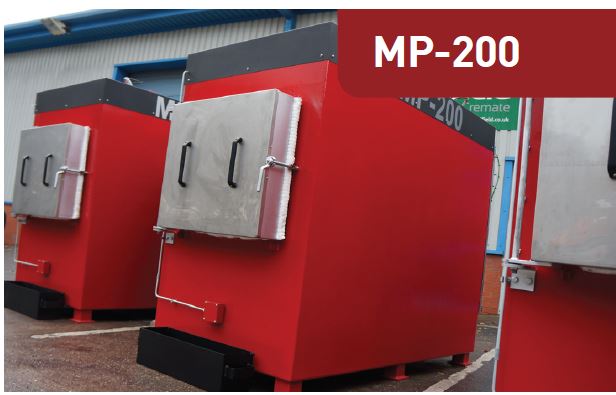

INCINERATOR HTI (Addfield MP-200) diesel, 230V

Form

Stand alone medical wast burner. Suited for medical wet waste (50-100%), blood, drips, human faeces, human organs, human tissues, human limbs, cancer treatment, pharmaceuticals, surgery waste, syringes/needles.

  • Front loading door.
  • Manually loading.
  • Load capacity (batch capacity) 200kg.
  • Burn rate in kg/hour: 50 -75 kg/hour.
  • Recommended hospital size: 0-200 beds.
  • Standard delivered with 3660 mm of chimney, measured from the floor.
  • Easy ash removal.
  • Two chamber combustion of highly infectious and wet waste.
  • Fully insulated for increased efficiency.
  • Pre-fabricated 8 and 10 mm robust mild steel casing.
  • Lightweight insulated loading door with tight secured seal.
  • Primary and secondary chamber lining thickness at 221mm , rated at 1750 degrees Celsius.

Primary chamber:

  • Fully insulated internal refractory lining, constructed from high grade refractory brick ensuring a self-supporting interlocked arrangement.
  • One fully interlocked, manually operated, access door
  • One waste ignition burner, temperature controlled on-off, complete with internal air fans
  • One hot hearth combustion burner, temperature controlled on-off, complete with internal air fans
  • Secondary combustion burner air fans with automatically controlled distribution to their designated area.
  • Two temperature sensor mounting points

Secondary chamber:

  • Fully insulated internal refractory lining, constructed from high grade refractory brick and low thermal mass insulation.
  • One secondary chamber burnout burner, temperature controlled on-off, complete with internal air fans
  • Integrated combustion burner air fans with automatically controlled distribution to their designated area.
  • One temperature sensor mounting point at the base of exit flue ensuring the chamber reaches the necessary 850°C/1100°C minimum

Other characteristics:

  • Full electrical control and burning/temperature cycle control.
  • Flame failure controls.
  • Adjustable flame patterns.
  • Integral fuel pump.
  • Solenoid valves.
  • Continuous air fan.
  • Fuel sensors.

Fit

To be installed in medical facility around the world. Need access to fuel (Diesel) and electricity to operate this machine correctly.

For advice on medical waste management, please do refer to Public health engineering in emergencies, 2nd edition 2010, chapter 6: medical waste management.

Function

Machine to incinerate waste from medical facilities with the help of burning fuel.
