ADAPTER COUPLING compr/threaded, PP, Ø 32mm-1", male, NP16

NST CWATCPCOA32IM

Valid Article

OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list



Add Kit To Wishlist



ADAPTER COUPLING compr/threaded, PP, Ø 32mm-1", male, NP16

Form

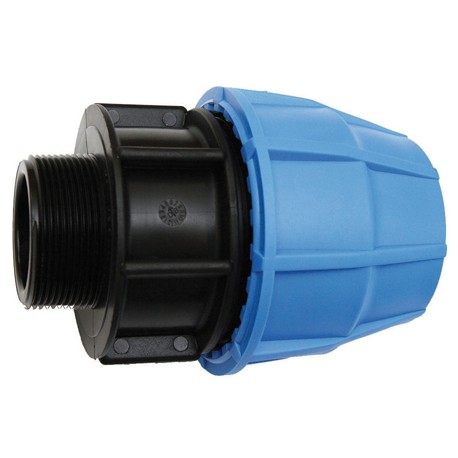

Straight PP (polypropylene) reducer coupling, with a compression coupling diameter 32mm on one end and a threaded male coupling 1" on the other. Maximum nominal pressure NP16 resisting up to 16 bar.

Per piece.

Fit

To be connected to a PE hose with an external diameter of 32mm on one end and a 1" threaded female coupling on the other side.

To ensure a leakage-free compression, the coupling and pipe should come from the same manufacturer. The gasket/seal must be present and free of debris. The compression coupling can be fasten by hand or using a claw wrench.

On the male thread use threading fibres or teflon tape is required.

Function

Used to connect a 32mm PE hose to a 1" female threaded coupling.
