GOGGLES PANORAMIC, regular nose, indirect ventilation

https://unicat.msf.org/cat/product/76498
STD SPPEGOGPRV1

Valid Article

P
The order of this product needs to be justified and is only acceptable under certain conditions.
tegory III - risks that may cause very serious consequences such as death or irreversible
Personal protective equipment: Equipment that will protect the health staff against health or safety risks in medical activities.
The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

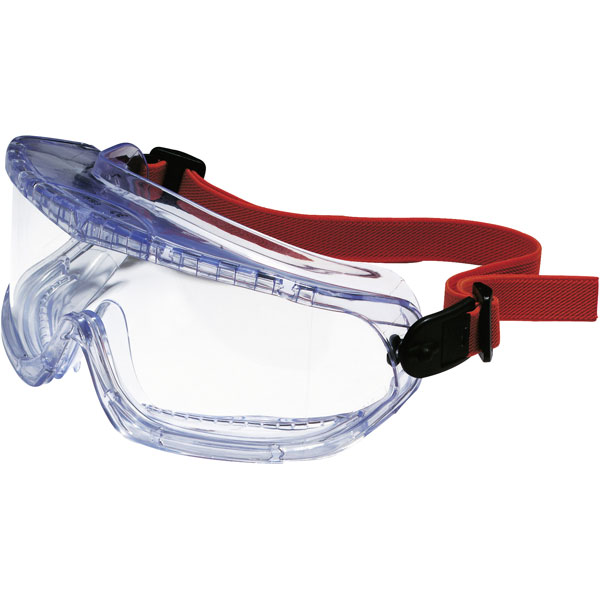

PANORAMIC GOGGLES

Definition

Goggles, or safety glasses, are protective eyewear that usually enclose or protect the area surrounding the eye in order to prevent particulates, water or chemicals from striking the eyes. In haemorrhagic fever contexts it is recommended to use safety wrap around goggles: they protect the eyes from dust and splashing.


Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

Markings written on the goggles according to the EN 166 specifications:

  • Mechanical class = F = Minimum mechanical resistance (resistance to shocks of low-energy particles): withstands a bead of 6 mm and 0.85 g at 45m/s impact
  • Optic class = 2 = applicable for intermittent use, for activities with medium visual requirements

Ventilated versus non ventilated

  • Not ventilated = waterproof = sealed (SSPEGOGPRN1 )
  • Indirect ventilated (SSPEGOGPRV1 and SSPEGOGPWV1): a venting system that does not allow for direct contact of particles to the interior of the goggles. E.g.: angled vents, prefereably at the bottom, which face away from the front lens that the wearer looks through. This reduces the fogging.

Lens

  • Material: mechanically strong but less flexible polycarbonate (PC) or a better chemical resistant acetate type (PA) are equivalent options
  • Clear lens for protection against UV light
  • Panoramic view 180°
  • The optical zone for every eye must be at least 32 mm horizontally and 25 mm vertically
  • Replaceable
  • Treated against fogging and against scratching
  • Must be easy to disinfect and resistant to chlorine à.5% solution

Frame

  • Good seal with the skin of the face
  • Shape of nose bridge: Regular (SPPEGOGPRN1 and SPPEGOGPRV1 ) or wide (SPPEGOGPWV1 )
  • Covers the eyes and big part of the cheek (important in VHF context: between hood and respirator)
  • Parts that touch the skin may not be allergenic or irritating
  • Easy to combine with corrective glasses
  • Made in thermoplastic elastomer
  • Flexible frame that easily fits all face contours and accommodates prescription glasses
  • Broad and fully adjustable headband that does not become loose during clinical activity.
  • Must be easy to disinfect and resistant to chlorine 0.5% solution

Instructions for use

The ocular should be cleaned regularly. It can be cleaned with water and soap, or cleaning fluid for glasses.

In case the goggles should be cleaned with a chlorine solution, it is necessary to clean it afterwards with water and soap, and rince it thoroughly with clear water. No traces of chlorine should be left over because these traces will quickly result in fogging.

Scratched ocular should be replaced (see related articles).

If the elastic strap is damaged, the entire goggle needs to be replaced.

Precautions for Use

In order to maintain your goggles

  • avoid scratching or rubbing by keeping them safe in a protective pouch
  • clean your lenses after each use
  • remove any chlorine or other harmful chemicals: gently wash them with lukewarm water
  • leave the goggles to dry and, in the case of PC lenses (anti-fog coating), try to avoid rubbing the lenses or touching them, as this may start to remove the coating

MSF requirements

The goggles are part of the full personal protective equipment worn in VHF contexts. Indispensable item for the protection of staff and patients' attendants against blood-borne pathogens in haemorrhagic fever contexts.

Must be disinfected with chlorine solution and easy to remove.
