QUICK FIX SHACKLE, for duplex chain 12B2, 19.5mm
NST
PHDWCHAIQ19
Valid Article
Account code:
61000
Last Updated on:
06/12/2025, 00:55:03
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

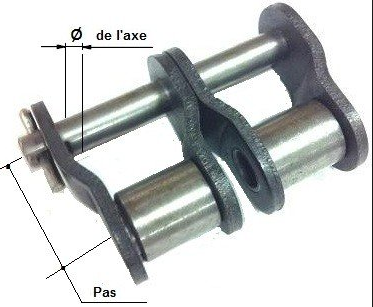

QUICK FIX SHACKLE, for duplex chain 12B2, 19.5mm
Form
- Compact steel connector composed of two outer plates, dual pins, and a removable locking plate secured with a clip.
- Manufactured with hardened components to withstand repeated mechanical loading and chain tension.
Fit
- Designed to match the geometric spacing of ISO 12B-2 duplex chain (19.05 mm pitch), enabling direct attachment to the chain's end links.
- The removable side plate allows quick installation or removal without dismantling the surrounding chain assembly.
Function
- Provides a fast, secure method to join or terminate duplex chain sections.
- Ensures continuity of force transmission by locking the chain's two strands onto a stable, mechanically aligned connector.
