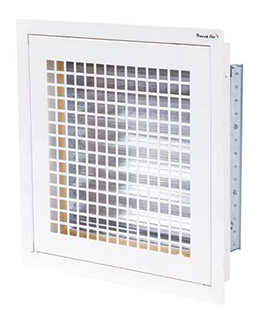

REFILL GRID, for filter F7 762x762x48mm

Form

Square mesh grid (20 x 20) in painted steel, colour white RAL 9010.
Closing by magnet.
Filter holder frame with screw fixing directly into the wall, ceiling or plenum.
Filters tightly clamped by movable feet.
Built-in pressure tap.

Advantages

  • Enhanced cleanability: flush grid with a completely smooth frame.
  • Grid opening and filter maintenance without tools.
  • Balancing damper adjustable from the room without removing the filter.
  • Filter visible from the room, allowing easy verification of the sound level, clogging and easy maintenance.
  • Filter flush to the grid avoiding "dead zones".
  • Plenum Air Proof: class C sealing.

SUPPLIED WITHOUT FILTER

Fit

Compatible with 77,074 / CCLIVENT00R1 - (refill grid) FILTER ELEMENT F7, 762x762x48mm

Function

Air intake in operating theatres with M6 filtration as recommended in NFS 90-351.
Possible use in pharmaceutical, cosmetic (powder extraction)...
