WAREHOUSE double doors (Flospan AF930) 9.3x37.5m insulated

https://unicat.msf.org/cat/product/77564
NST CSEMTRANF9I

Valid Article

P
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
https://unicat.msf.org/web/image/product.template/564822/image_1920?unique=2bd89d9

This combination does not exist.

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

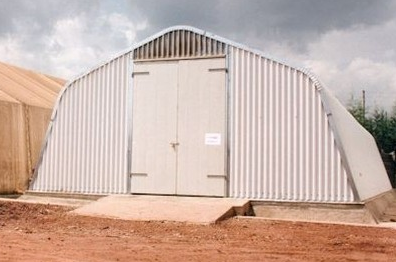

WAREHOUSE 2 double doors (Flospan AF930) 9.3x37.5m insulated

Form

  • The Flospan AF930 frameless building system is one of the lightest and easiest-to-erect steel building systems in the world.
  • Insulated walls and roof for thermal protection. Consult supply center or construction advisor for insulation details.
  • Building span: 9.3 m; building length: 37.5 m (length can be modified by adding or removing flospans of 0.9 m increments).
  • External ridge height: 4.8 m; eaves height: 3.2 m.
  • Double doors: 3.7 m high × 2.6 m wide; personnel doors: 2 m high × 0.9 m wide.
  • Floor area: 349 m²; building volume: ~1,213 m³.
  • Wall inclination: 18°; roof pitch: 24°.
  • Cladding and trims manufactured from hot-dipped zinc-coated steel (“Galvatite”), base and door frames from pre-formed hot-rolled mild steel, all galvanized for corrosion protection.

Fit

  • Can be erected on various foundation types: bare ground with ground spikes or concrete slab using M16 × 140 mm through bolts.
  • Modular design allows secure integration of walls, roof, and doors.
  • Doors and frames are pre-formed and compatible with building frame for simple assembly.
  • Adjustable to site-specific requirements; length modifications via additional flospans.

Function

  • Pre-engineered: fully designed for assembly by hand with no cranes, cutting, or drilling required.
  • Redeployable: all holes pre-drilled; can be disassembled, relocated, and reused without material loss.
  • Fast and Flexible: can be erected on bare ground or foundations; withstands hurricane-force winds and snow loads.
  • Long Life: durable design for 40+ years of service.
  • Provides secure, weather-resistant, insulated storage space; double doors allow safe and efficient movement of goods while maintaining internal environmental control.
