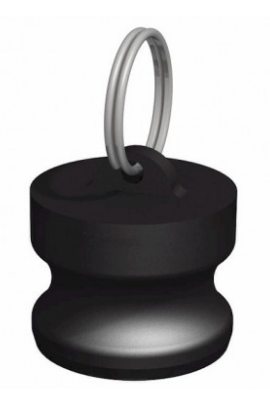

CAMLOCK COUPLING, PP, Ø1'' DN25, plug M
NST
CWATCPCOC025H
Valid Article
Account code:
61010
Last Updated on:
11/12/2024, 19:34:05
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
CAMLOCK COUPLING, PP, Ø1'' DN25, plug M
Form
Polypropylene-made coupling. With a 1" male camlock coupling on one end and a plug on the other end.
Per piece.
Fit
Fits on a 1" male camlock coupling.
The cam connection is made by fitting the male connector into the female part. They are coupled in similar diameter. Locking is done by folding down the two cams of the coupler, thus exerting permanent pressure on the seal, ensuring the tightness of the connection.
To ensure a leak-free fitment, the use of thread fibers or Teflon tape on the male threaded fitting is required.
Part of the Rapid Deployment Water Network kit.
Function
Used to block the outlet of a pipe.
