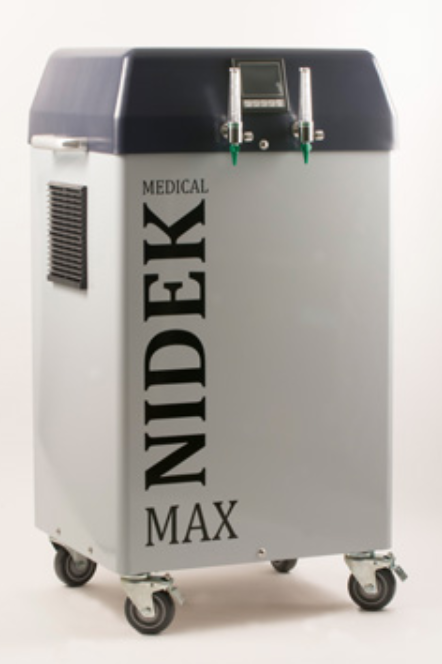

OXYGEN GENERATOR (Nidek MAX 30) 30L 230V/50Hz
Valid Article
OXYGEN GENERATOR (Nidek MAX 30) 30l
Definition
The device is intended to supply supplemental oxygen to persons requiring oxygen therapy. It products oxygen by concentrating the oxygen contained in room air. It
can be used to administer oxygen with nasal cannulas or another type of device. It is possible to connect several Nidek in order to increase the oxygen flow production
Specifications
Performance
- Oxygen Volume/Pressure: 63 SCFH @ 50 psi or 30 LPM @ 3.4 bar
- Oxygen Purity: 93% (± 3%)
- Oxygen Dew point: - 60°F or -51°C
- Feed Air Requirement: None, compressors included
- Response Time: Approximately 5 minutes to attain maximum purity after initial start-up or extended shut-down, or longer if a supplemental tank is used.
Physical
- Oxygen Outlet Fitting: 1/8" NPT Male Insert
- Sound Levels: 60 dBA @ 1 m
- Dimensions: 24 x 21 x 44 in (W x D x H) or 610 x 530 x 1120 mm (W x D x H)
- Weight: 200 lb or 91 kg
- Power Requirement: Standard (International) 230 VAC, 50/60 Hz, Single Phase, 11 A
- Oxygen Flow Rate: 63 SCFH or 30LPM
Quality standards
Components
- Casing with vertical layout + handle + 4 wheels
- Power cable
Technical specifications
- Oxygen concentration at 93% (+/- 3%) at 30 LPM
- Pressure of oxygen output: 3,4 bar - 50 PSIG
- Colour HD touch screen 4.5"
- Output: 2 to 30 litres/min
- Adjustable flow rate up to two outlets: 1 to 15 LPM each
- Oxygen outlet: NF, BS, DIN
- Power switch
- Power supply: 230 V - 50/60 Hz / 11A
- Average power: 2100 Watts
- Noise level within ISO 80601-2-69:2014 guidelines
- On both sides and back: three cabinet inlet air filters
- At the compressor input: 3 inlet air filters
- Before the oxygen outlet: a final product filter < 3µm
- Multiple tube-axial fans (x10) cool the compressor compartment and the heat exchanger coils.
- Mobile: on wheels Ø 65 mm
- operating conditions:
- temperature between 10°C and 40°C
- relative humidity between 15% and 95% non condensing
Dimensions
Volume D x W x H/ 530 x 610 x 1120 mm
Weight: 113 kg
Supplied with the Article
- 1 user's and maintenance manual
- 1 technical manual
Instructions for use
Oxygen Generator for
- Respirateurs d'anesthésie / OTs
- Respirateurs de réanimation / ICUs
- Oxygénothérapie
- Systèmes de remplissage de bouteilles
Power supply
The generators must work on a stabilized electric supply source.
In case of electric supply problems it is necessary to provide for assistance like a diesel type generator.
Precautions for Use
- Place the generator in a well ventilated area, at least 30 cm away from walls or any other object that might prevent free air flow.
- Protect the generator from humidity.
- Protect the O2 source from any flame or spark. Do not smoke nearby.
- Do not to use grease on the connections.
- Do not to use solvent (alcohol, petrol…) on the equipment.
Maintenance
- Wash the three cabinet air filters every two weeks or 20h.
- The compressor air filter element should be replaced every 6 months or more frequently in dusty envir
- Check oxygen concentration every 15,000 hours or 3 years to verify the continuous function. The low pressure compressor should be rebuilt after 15000h of operation. The booster compressor should be rebuilt after 6000h of operation.
MSF requirements
Mobile O2 station producing 30LPM, use in projects requiring high flow oxygen
Description approved by OCB referent (Jonathan Delchambre) in September 2021.
