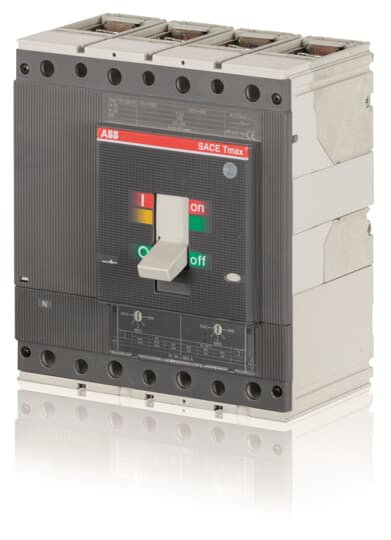

MCB (1SDA054439R1) 5-10In 400A 36kA, 4P

Form

  • Molded case Circuit Breaker MCCB 4 pole, 400 amps, 36 kA Icu conforming to EN/IEC 60947-2 - 400 V AC 50/60 Hz. Thermal-magnetic.
  • Single terminal, top or bottom rigid wire(s) 120-240 mm² max
  • Single terminal, top or bottom flexible wire(s) 120-240 mm² max
  • Operational temperature: -35 +70 °C
  • Height: 205mm
  • Width: 184mm
  • Depth: 103.5mm
  • Weight 5.8kg

Fit

Compatible with main circuit and distribution boards of similar make and technical specifications.

Function

MCBs or Miniature Circuit Breakers are electromechanical devices which protect an electrical circuit from an over current.

A MCB functions by interrupting the continuity of electrical flow through the circuit once a fault is detected.
