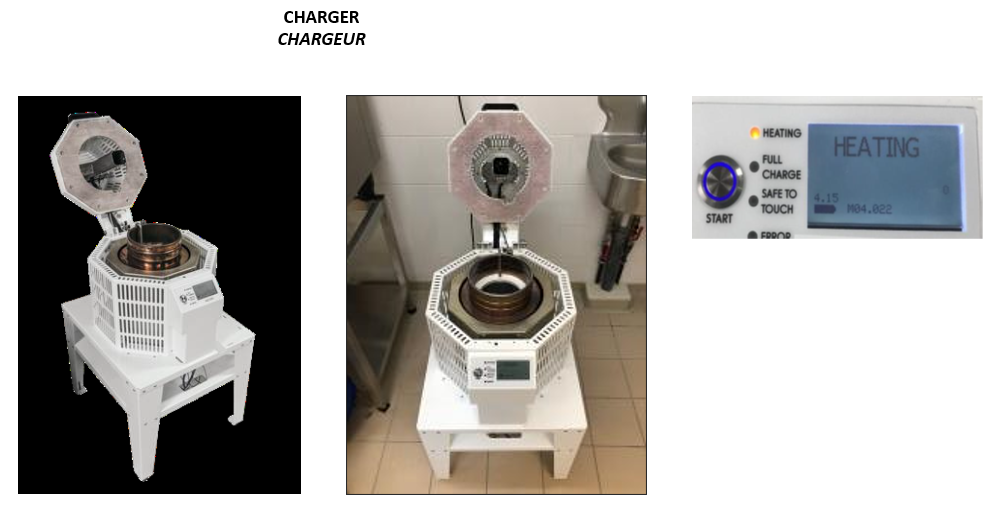

(vaccine carrier Indigo 2l) CHARGER

Definition

Device used to recharge the Indigo vaccine carrier (PCOLBOXCN2-) with energy by raising the temperature of the cooling container to a temperature of +400 °C for 2 and a half hours.

Specifications

  • voltage: 230V AC 50 Hz
  • electrical power: 2.5 kW
  • charge phase: 2h30 at 400 °C
  • cooling phase by ventilation: about 2h30
  • contains 2 lithium batteries 18650, 3.7V 3.5Ah

CAUTION:

At the end of the heating phase, the walls of the container are 400°C, risk of burning, wait imperatively the end of the cycle.

Transport Dangerous Goods

WARNING:

For air transportation this item is regulated, as it is classified as hazardous good by IATA:

  • UN3481 Lithium ion batteries contained in equipment
  • Class: 9
  • Packing Instructions: 967 Section II
  • The label must include the UN code of the battery + an emergency number to contact in case of an incident
  • Limit per package:
    • Pax A/C (Passengers & Cargo Aircraft) = 5 kg
    • CAO (Cargo Aircraft Only) = 5 kg

For maritime transport: not restricted as per special provision IMDG 188.


Instructions for use

Charges the Indigo 2l vaccine carrier.

Some restricted information has been hidden. Sign in to see this information
