(Fronius) COMMUNICATION CARD (Datamanager 2.0)
NST
PELESOLANFOCC
Valid Article
Account code:
61120
Last Updated on:
07/11/2024, 20:17:52
Former
Code(s):
PELESOLANFSCC
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

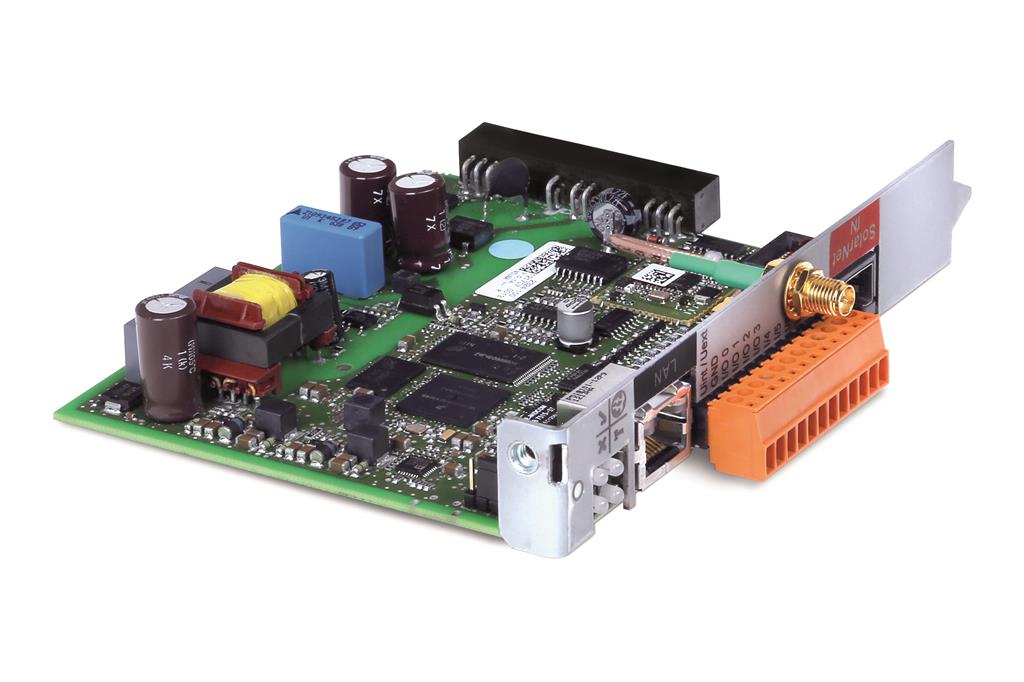

(Fronius) COMMUNICATION CARD (Datamanager 2.0)
Form
A network-comptatible communication cards, also called a datalogger, for Fronius solar inverters.
Technicalspecifications:
- Storage capacity: max. 4096 days
- Supply voltage: 12V DC, power supplied by inverter
- Energy consumption: < 2.0W
- Dimensions: 132 x 103 x 22 mm
- Operating temperature range: -20 - +65° C
Per piece.
Fit
The communication card is compatible with all these inverters: Fronius Galvo, Fronius Symo, Fronius Primo and Fronius Eco.
It has to be connected with a CAT5 or CAT6 cable with RJ45 connectors.
Function
The communication card is a network-compatible datalogger for Fronius solar inverters for all applications. T rough internet connections, LAN or WLAN, this communication card sends the PV system values to the Fronious Solar.web online portal. This communication card enables to provide you with an overview of how the system is operating at all times.
