KIT TRACKING SYSTEM hybrid (NOVACOM)

Definition

Hardware and intial services for complete Novacom/Humanav Hybrid vehicle tracking system including:

  • alert button
  • postponed activation
  • remote installation validation

Specifications

GENERAL

  • Uses both cellular and satellite networks, reducing satellite airtime charges
  • Continuous operation - battery provides up to 12 hrs of operation when no vehicle power available
  • Utilizes Inmarsat network
  • Environment -40°C to+85°C; Transceiver: IP 50, Antennas: IP67

SATELLITE COMMUNICATION

  • Satellite service: Two-way, Global, IsatData Pro
  • From-mobile message: 6,400 bytes
  • To-mobile message: 10,000 bytes
  • Typical latency: <15 sec, 100 bytes
  • Elevation angle: +20° to +90° (remote antenna);
  • Frequency: Rx: 1525.0 to 1559.0 MHz; Tx: 1626.5 to 1660.5 MHz
  • EIRP: <7.0 dBW

CELLULAR COMMUNICATION

  • GPRS frequencies: 850/900/1800/1900 MHz
  • HSPA frequencies: 800/850/900/1900/2100 MHz
  • SIM: 3.3V/1.8V SIM
  • Security: jamming detection

GPS

  • Acquisition time: hot: 1 second; cold: 27 seconds
  • Accuracy: 2.5m CEP-horizontal
  • Sensitivity: acquisition: -148 dBm; tracking: -159 dBm
  • Security: GPS signal jamming detection

ELECTRICAL

  • Input voltage: 9 to 32V; load dump protection: +150V;
  • Battery backup: >12 hours operation with 1-minute cellular reporting or 10-minute satellite reporting

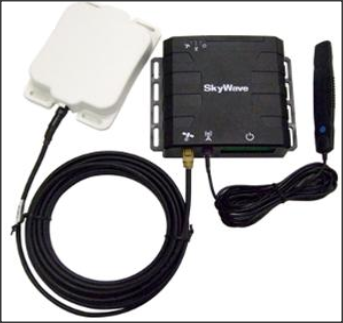

Components

Complete Vehicle Tracking System + Panic button

  • IDP-782 Terminal 3G with battery
  • IDP-782 bottom co. SAT antenna
  • IDP-782 5m SAT antenna cable
  • IDP-782 power cable
  • IDP-782 GSM Antenna
  • IP67 Emergency Push Button

SATairtime 400mess/mth GPRS 5' SIM Novacom

  • HumaNav platform access for 1 year
  • GPRS & SAT telecom provided by CLS
  • Pooled plan including 400 messages transmitted per month per vehicle.
  • Frequency :
    • 5 minutes when under GPRS coverage
    • 30 minutes when under satellite coverage

Options

  • SMS alert - SMS alert notification by recipient
  • Remote command - Remote command sent from platform to asset
  • Additional message - Additional message outside initial monthly plan (400 messages)

To be Ordered Separately

Remote imobilisation module:

PCOMGPSTNIR - (GPS tracker Novacom IDP-782) REMOTE VEHICLE IMMOBILISATION

Can also be pre installed in land cruisers during modification. Labour will be charged.
