HYDRO-EXTRACTOR (Socolmatic J15) 3x400V+N, 50Hz
Form

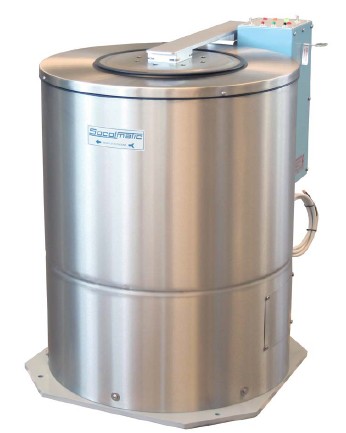

The centrifugal hydroextractor J15 is a hydroextractor built with basket, tank, portholes in AISI 304 stainless steel. It is a machine capable of extracting the maximum amount of water from the laundry without damaging it with a damped rotation of the drum of 1450 revolutions per minute.
The load capacity of the J15 hydroextractor is 14kg. This model is supplied with an electronic panel able to adjust the duration of the work cycle (from 1 to 8 minutes), start or stop the machine at any time and open the door.
Both the working phases (cycle, braking, stopping and opening of the door) and anomalies (such as unbalanced load, thermal activation of the motor), are signaled by luminous LEDs and by an audible alarm.
In addition, this model is equipped with a basket stop sensor to minimize braking time.
Fit
- Load capacity (ratio 1/4): 14 kg
- Width: 660 mm
- Height: 900 mm
- Depth: 860 mm
- Net weight: 180 kg
- Drum diameter: 490 mm
- Drum depth: 300 mm
- Number of drum revolutions: 1450 rpm
- Port diameter introduction: 330 mm
- Motor consumption: 220 V / 3F A 11
- Motor absorption: 380 V / 3F A 9
- Electric power supply: 380V-50Hz 3F + N + T
Function
A centrifuge is used to quickly and deeply spin wet laundry so that it dries faster.
