LIGHT BOX with magnifier for microplate, visual 110/230V

Definition

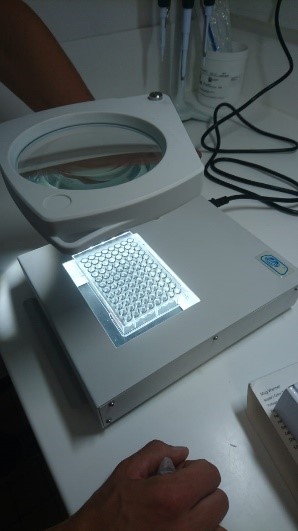

Microplate Reading Lightbox for 96-well plates.

This unit is equipped with a glass support backlit by LED rails to improve the reading of microplates. The light intensity can be adjusted by means of a dimmer located at the rear of the device.

A rod supporting a removable magnifying glass is screwed to the base. This magnifier allows the user to better see the growth details in the microplate wells.

​A double-sided removable back-ground can be inserted from the front of the base. There is a white side for reading colors, and a black side for reading turbidities.

Specifications

Some restricted information has been hidden. Sign in to see this information

Technical specifications

  • Rectangular LED lamp with location for a Beckman & Coulter 96-well microplate
  • Magnifying glass to improve visualization
  • 110/230 V / 30 W

Dimensions

Length: 27cm

Width: 22cm

Height (without magnifying glass): 6 cm

Height (with magnifying glass): 20 cm

MSF requirements

Reserved for projects using the Mini-Lab
