CLINICAL CHEMISTRY ANALYSER (SimplexTAS 101)

Please check with your OC lab referent to ensure the appropriate choice of biochemistry equipment, depending of your context

Definition

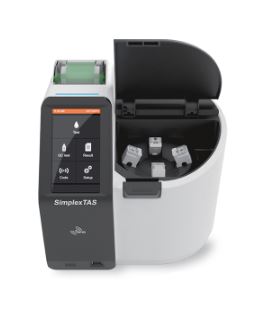

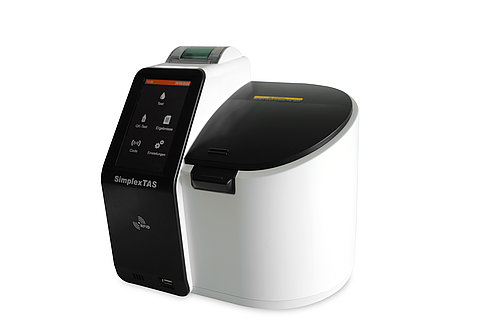

SimplexTAS™ 101 system is a compact and fully automated multi-assay system for point-of-care testing. It is designed to perform quantitative measurements.

Specifications

Multiple parameter testing

  • HbA1c
  • Glucose
  • Creatinine
  • Creatinine kinase
  • Triglycerides
  • Cholesterol total
  • HDL Cholesterol
  • CPT/ALAT
  • GOT/ASAT
  • CRP
  • BUN
  • Total Protein, ALT, AST
  • GGT
  • Haemoglobin
  • Potassium K+

Each test takes approximately 13 minutes

Some restricted information has been hidden. Sign in to see this information

Components

  • 1 x SimplexTAS™ 101 Analyzer
  • 1 x User manual
  • 1 x USB cable for PC communication
  • 1 x AC power cord
  • 1 x Adapter (43V/1.5A)
  • 4 x Balance Cartridges
  • 2 x Printer paper rolls
  • 2 x Fan filters

Technical specifications

  • Communication interface: USB 2.0
  • Capacity of result records: 2,000 patient results, 200 control results
  • Input: 100~240 VAC, 50/60 Hz, 0.75A
  • Operating temperature: 18~32°C
  • Operating relative humidity: 10~70%, non-condensing
  • Keep in a dry, clean and horizontal surface. Avoid direct sunlight

Dimensions

  • 265(W)x217(L)x262(H) mm
  • 3.4 Kg

Instructions for use

Follow instruction manual.

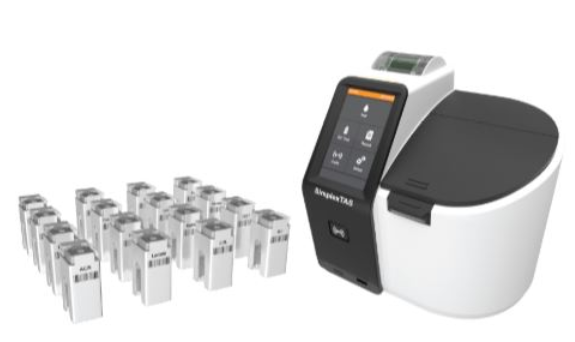

The cartridges and controls have to be ordered separately. One cartridge is aimed to perform the test for 1 patient or 1 control.

Maintenance

Clean the exterior of the analyser, screen and chambers with a soft cloth after power off the analyser

Storage

  • Temperature : 4~40ºC
  • Relative humidity: 10~70%, non-condensing
  • Cartridges to be kept 2-8°C

MSF requirements

Please contact your laboratory advisor to help identify the best equipment for your needs.
