CAMERA for documents, 8MP, USB 2.0

https://unicat.msf.org/cat/product/86431
STD ADAPCAMEUU8

Valid Article

The product is part of at least one Kit. A kit is a collection of products (medical and/or logistic) that are needed for a certain intervention in emergency. The choice and quantity of the articles reflects the MSF protocols for this specific situation. The use of Kits allows to start an intervention without a detailed evaluation.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

CAMERA for documents, 8MP, USB

Definition

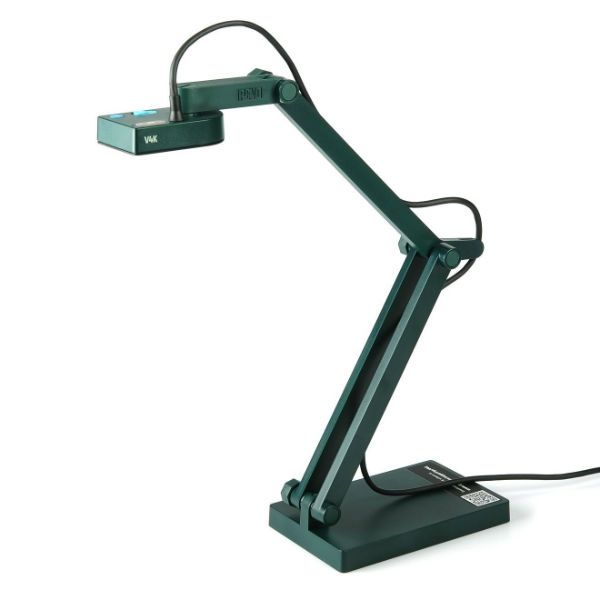

Articulating stand camera to take pictures of the reading of ID and AST microplates.

On the head of the device, controls adjust the focus and exposure of the image.

A switch enables or disables autofocus.

This camera plugs into USB 2.0 on a computer and can be used on PC/Mac.

Specifications

  • 8 Megapixel sensor
  • Ultra high definition resolution up to 3264 x 2448
  • Live video capture up to 30 fps (full HD)
  • Built-in microphone
  • USB 2.0 interface
  • Compatible with Mac, Windows PC and Chromebook
  • Maximum shooting area: 13.46" x 10.04" (342 x 255 mm)
  • Dimensions LxLxH (folded): 10.91"x 3.07" x 1.89"(277 x 78 x 48mm)
  • Weight: 581 g (860 g with packaging)
  • USB cable length: 150 cm

Dimensions

  • Dimensions LxLxH (folded): 10.91"x 3.07" x 1.89"(277 x 78 x 48mm)
  • Weight: 581 g (860 g with packaging)

Instructions for use

Used in the Mini-Lab:

With the microplates viewer light box to perform ID and AST microplates reading.

Precautions for Use

Use in the Minilab:

ID and AST mircoplates reading

Some restricted information has been hidden. Sign in to see this information

MSF requirements

Reserved for projects using the Minilab
