ORTHOPAEDIC ACCESSORIES SYSTEM for OT table Medifa 5000

https://unicat.msf.org/cat/product/88114
STD KMEDMTAO1--

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
PE
The order of this product needs to be justified and is only acceptable under certain conditions.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

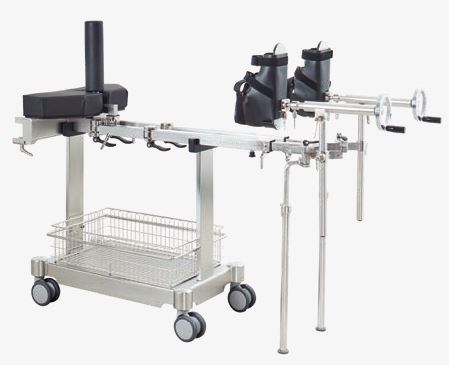

ORTHOPAEDIC ACCESSORIES SYSTEM for op. table Medifa 5000

Definition

Orthopaedic extension that fits on the surgical operating table Medifa 5000 for orthopaedic surgery of lower limbs.

Specifications

To be used with the Table Top sliding ref. 501135

  • 1 x 63000_1 EXTENSION DEVICE EEMDTAOA151
    • Levitating
    • Max. patient weight: levitating 136 kg
    • with supporting bars 250 kg
    • Material: Stainless steel
    • Included in delivery:
      • Fixation adapter for operating table incl. pelvis part with upholstery
      • Countertraction post for perineum and for neck of femur
      • Two swivelling extension bars with double joints
      • Two swivelling and height adjustable drawing spindles with adaption for extension shoe holders
      • One trolley with storage basket for additional accessories
      • Two height adjustable supporting bars
  • 2 x 61010 EXTENSION SHOE adult, piece EEMDTAOA152
    • For fixation of foot
    • Suitable for the extension devices 63000_1 and 63000_2
    • Piece
  • 2 x 61020 EXTENSION SHOE child, piece EEMDTAOA153
    • For fixation of foot
    • Suitable for the extension devices 63000_1 and 63000_2
    • Piece
  • 1 x 63025_1 COUNTERTRACTION POST femur EEMDTAOA154
    • to be used with the extension device 63000_1
    • For extension in lateral position
    • Radiolucent perinneal arc
    • Upholstery: PUR
  • 1 x 63045 COUNTERTRACTION POST tibia/fibula EEMDTAOA155
    • For positioning and fixation of patient during surgeries at lower leg
    • Radiolucent padded roll
    • Adjustable in height and inclinable
    • Material: Stainless steel
    • Upholstery: PUR, antistatic
    • Suitable for the extension devices 63000_1 and 63000_2
  • 1 x 63030 PELVIS PLASTER CAST UNIT EEMDTAOA156
    • Usable for adults and children
    • Slidable countertraction post
    • Material: Stainless steel
    • Suitable for the extension devices 63000_1 and 63000_2
  • 1 x 63060 HORSESHOE HOLDER Kirschner EEMDTAOA157
    • For extensions using Steinmann nails
    • Material: Stainless steel
    • Suitable for the extension devices 63000_1 and 63000_2
  • 1 x 63026 LEG SUPPORT + straps EEMDTAOA158
    • Including fixture straps
    • For positioning of healthy leg during extension
    • Tiltable upholstery by means of ball joint
    • Upholstery: Viscoelastic foam
    • L x W x H: 400 x 115 x 80 mm, electrically conductive, detachable
    • Material: Stainless
  • 1 x 63070_1 TRANSFER LEG REST, pair EEMDTAOA159
    • For preoperative positioning of legs
    • Including upholsteries
    • L x W x H: 600 x 200 x 35 mm
    • electrically conductive
    • Suitable for: 63000_1
    • Pair
  • 1 x 62050 ARM EXTENSION DEVICE EEMDTAOA160
    • For intramedullary nailing of humerus.
    • Radiolucent countertraction post
    • Including tension rod, countertraction post and clamp
  • 1 x 62055 WEINBERGER HAND CUFF EEMDTAOA161
    • Secure fixation of hand and upper arm during intramedullary nailing of humerus.
    • Radiolucent
    • Can be sterilised
  • 1 x 61330 MENISCOTOMY ROLL + clamp EEMDTAOA162
    • Including Clamp
    • Adjustable in height
    • Upholstery: PUR, electrically conductive
    • Material: Stainless steel
  • 1 x 61395 HEAD SUPPORT for shoulder surgery EEMDTAOA163
    • For comfortable and safe positioning of patient´s head during shoulder surgeries
    • Attachment at tripartite back rest or universal adapter. Extendible
    • Incl. Upholstery
  • 1 x 61560 SIDE RAIL EXTENSION, 32 cm, + clamp EEMDTAOA115
    • Including Clamp
    • Extends side rail up to 320 mm
    • For attachment of accessories at side rail (EU)
    • Material: Stainless steel
  • 1 x 61100 UNIVERSAL ADAPTER EEMDTAOA164
    • For attachment of variety of head positioning and neurosurgical accessories
    • Material: Stainless steel
  • 1 x 63090 TROLLEY for extension device EEMDTAOA165
    • For storage and transport of extension device and accessories
    • Material: Stainless steel.
    • Suitable for the extension devices 63000_1 and 63000_2

Instructions for use

At the beginning of shift, after each surgical intervention and at the end of the surgical program or day (after the last patient), the table needs to be be cleaned and disinfected with a detergent/disinfectant for surfaces/non-invasive medical equipment. Prepare use-solution in concentration required. Always read the label and product information before use. Do not mix the with other products. Make sure to wet the surfaces completely, use a wipe or towel, keep them wet for the whole exposure time.

Once a week: remove the detachable parts of the OT table and clean them one by one.
