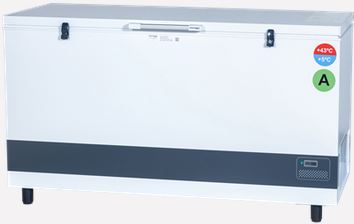

REFRIGERATOR (Vestfrost VLS504A AC G3) 242l net, 230V

Definition

The standard fridge for storage of thermosensitive items such as laboratory material, drugs and vaccines. As Vestfrost stopped producing the MK-series and VLSA series, Vestfrost VLS-4 line has been selected as the new standard fridge for MSF.

PQS approvedyes
manual adjustment temperatureyes
refrigerantR600a
produced untilnot specified

Specifications

  • gross volume: 314 litres
  • net volume: 242 litres
  • temperature range (43 °C ambient): +2 °C to +8 °C
  • hold over time: 55 hours
  • energy consumption:
    • stable: 0.638 kWh / 24 hours
  • integrated voltage stabilizer
  • dimensions L x W x H: 727 x 1620 x 1015 mm
  • weight: 172 kg, (shipping weight: 209 kg)
  • number of baskets: 10
  • refrigerant / amount: R600a / 0.130 kg
  • WHO PQS code: E003/113
  • freeze protection: grade A
  • 10 cm adjustable legs
Some restricted information has been hidden. Sign in to see this information

Transport Dangerous Goods

The VLS504A AC contains 0.130 kg of R600a. According to IATA regulation, UN3358, SP A103, the maximum quantity authorized per cooling unit is 0.100 kg. That means the VLS504 cannotbe transported by air.

Classe 2.1 (flammable gas).

UN code: UN3358 (REFRIGERATING MACHINES with flammable liquefied gas, non-toxic).

  • IATA Special Provision SP A103: more than 100gr gas cannot be transported by air
  • IMDG Special Provision: DS291: can be transported by sea

To be Ordered Separately

6 (Vestfrost VLSA) WATER BALLAST, blue, PCOLREFAVVLWL.

*Note that MSF-Log and APU are adding the water ballast, blue by default, no further action is needed from the mission.

Instructions for use

Advantages:

  • The VLS-4 line is a so-called ‘green-line' model (less power, more efficient refrigerant and insulation)
  • The refrigerant gas R600a (instead of the old standard R134a) is more efficient
  • It has a longer hold-over time related to the old MK model, but similarly to VLSA models, with less power required (test done according to PQS protocols)
  • This model has passed the freeze protection grade A test (see PQS test protocol)
  • With the same capacity, it has a significant higher performance and uses less power
  • There is a hidden thermostat (knob)
  • No automatic alert when power is off
  • Stable temperature even when the fridge is full

Remarks:

  • Although R600a is a more flammable gas, no clear risks are expected.
  • The fridge is PQS approved by the WHO
  • Rated for use in ambient temperatures above 5°C and below 43°C
  • Note: The compressor will turn off when the room temperature is between 5 - 10°C

Precautions for Use

Installation:

See manual for installation. In the user manual, it says that you have to install the appliance in a room with a volume of minimal 1m3 per 8g of hydrocarbon refrigerant used in the appliance, which is indicated on the rating plate. The required room volume should be:

Model

Quantities of R600a refrigerant

on rating plate [kg]

Minimal volume of room required (per freezer) [m3]
VLS204A AC, upgrade0.065 kg8.13
VLS304A AC, upgrade0.070 kg8.75
VLS354A AC, upgrade0.090 kg11.25
VLS404A AC, upgrade0.090 kg11.25
VLS504A, AC, upgrade0.130 kg16.25

Door seal:

Similar as the old models from Vestfrost, Vestfrost recommends to change the complete lid if the seal is old or broken.

Spare parts:

For all VLS-4 line spare parts can be ordered and they are compatible with all VLSA models.

Thermostat:

To upgrade an even better performance in terms of termperature stability, the position of the sensor has been changed as compared to VLS-A models. The sensor is closer the inside back up water tank whereby the internal temperature is measured and controlled, and even considered more optimal. Illustration above (previous placement of sensor refers to position in VLSA models).

Gas:

R600a is a refrigerant gas which is a flammable. In case of leakage, the risks of explosion or fire are almost non-existent if the precautions for use have been respected (see user instructions for more details). In case of intervention on the refrigeration unit, make sure that the technician takes the necessary precautions and that an extinguisher is at hand.

Some restricted information has been hidden. Sign in to see this information

MSF requirements

WHO/UNICEF standard
