MICROSCOPE (Panthera C2), 100-240V

https://unicat.msf.org/cat/product/89589
STD ELAEMICE14B

Valid Article

CE marking: declaration that the product meets EU standards for health, safety, and environmental protection. The CE marking indicates that the product may be sold freely in any part of the European Economic Area, regardless of its country of origin.
W0202050303 - Optical laboratory microscopes
European Medical Device Nomenclature (EMDN) is the nomenclature of use by manufacturers when registering their medical devices in the EUDAMED database. EMDN is characterised by its alphanumeric structure that is established in a seven-level hierarchical tree.
P
The order of this product needs to be justified and is only acceptable under certain conditions.
CT3+
Thermosensitive codes are defined for storage and transportation temperature requirements of the products.
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

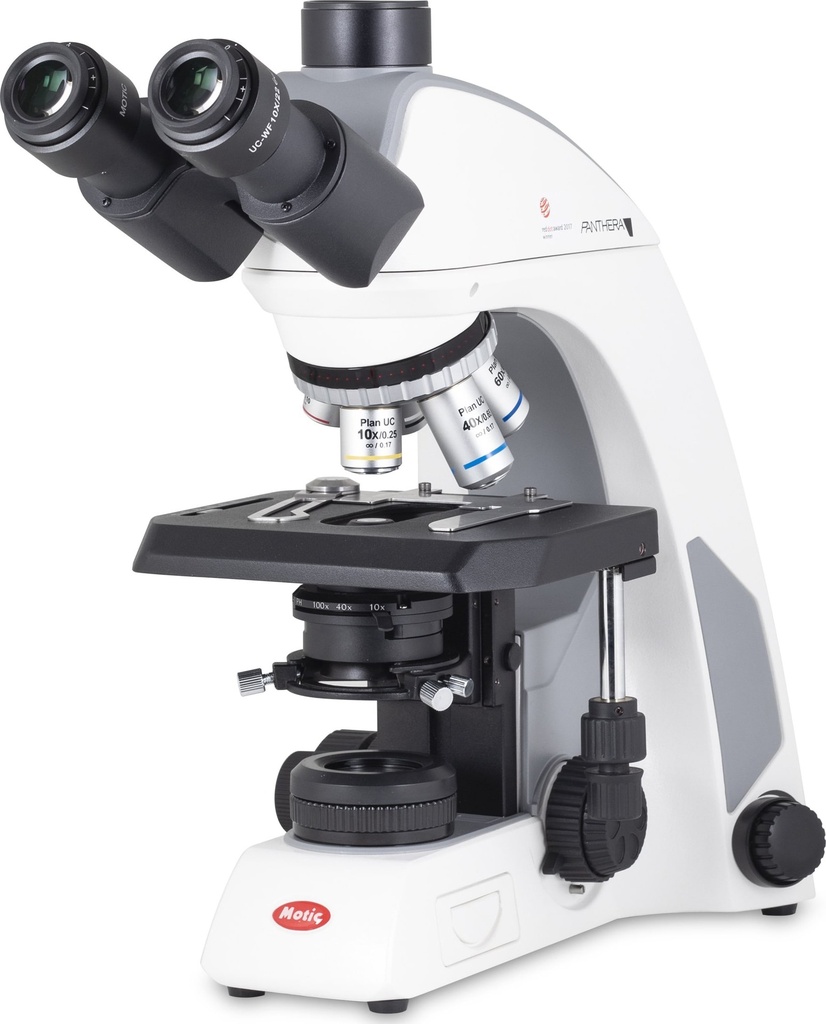

MICROSCOPE (Panthera C2)

Definition

Trinocular microscope on which a camera can be fitted.

Used for the analysis of a sample to determine the presence of bacteria and their morphotype.

The camera makes it possible to capture this observation.

This camera, connected via USB to a computer, can be used with the Motic Images Plus software (https://www.motic.com/As_Support_Download/).

Specifications

  • Indoor use
  • Altitude: max 2000 meters
  • Ambient temperature: 15°C to 35°C
  • Maximum relative humidity: 75% for temperature up to 31°C decreasing linearly to 50% relative humidity at 40°C
  • Supply voltage fluctuations: Not to exceed ±10% of the normal voltage
  • Avoid frost, dew, percolating water, and rain
  • Camera USB Output: 5V / 0.8A
  • Input: AC100~240V, 50~60Hz 1.2A
  • Bulb: 3W LED or 6V 30W Halogen
  • LED module, high color temperature: 5500K~ 6000K
  • LED module, low color temperature: 3000K ~ 3500K
Some restricted information has been hidden. Sign in to see this information

Technical specifications

Microscope:

  • Power supply‌: 110-240V (CE)
  • Other features‌: USB 2.0 port to power a camera
  • Included accessories‌: Dust cover, power cord, Allen key, immersion oil (5ml)

Camera:

  • Power supply: 5V (from USB port)
  • The package includes: CS ring adapter, USB 3.1 cable, 4-point Motic calibration slide, Motic Images Plus 3.0 software

Dimensions

Microscope:

  • Volume: 282x210x396mm (LxWxH)
  • Weight: 8,3kg

To be Ordered Separately

  • Camera
  • Adaptor for camera

Instructions for use

Protect from dust, shocks and humidity.

Precautions for Use

Secure all biomedical electrical devices in the laboratory. Contact your biomedical referent to define the best option.

Failing that, use a UPS double conversion for the electrical protection of the apparatus (see related articles below).

Maintenance

Recommendations lens cleaning:

  • Blow all dust particles away
  • Remove all water-soluble dirt with distilled water. If this is not successful, repeat using diluted dishwashing liquid.
  • Remove oily dirt, first using diluted dishwashing liquid.

MSF requirements

Reserved for projects using the Mini-lab
