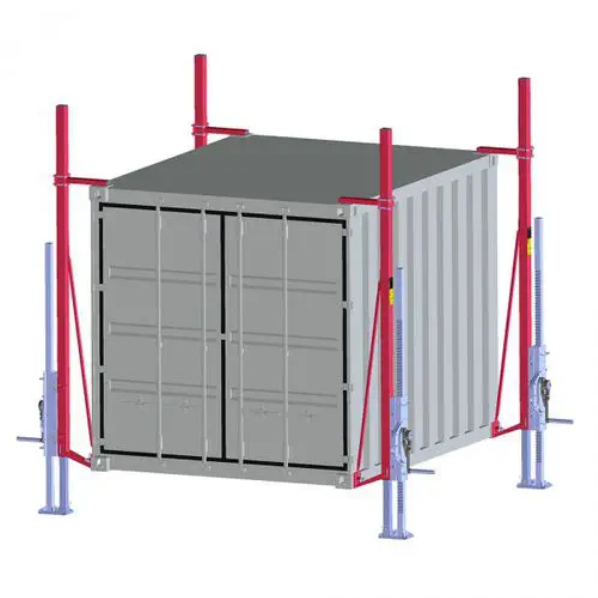

LIFTING JACKS, for 20 feet container, set of 4

Form

  • Physical Characteristics: Container lifting jacks are sturdy, adjustable devices designed to stabilize shipping containers. They typically consist of a heavy-duty steel frame with threaded rods or hydraulic mechanisms. They are simple to install and infinitely adjustable to accommodate different container heights.
  • Dimensions: Container lifting jacks come in various sizes to accommodate different container types (for this item 20-foot).
  • Modular Design: The lifting stems are modular, providing cost-effective solutions tailored to specific requirements.

Fit

  • Inclinometer Option: These jacks can be equipped with an inclinometer for precise positioning.
  • Attachment: They attach to ISO corners for secure handling.

Function

  • Purpose: Container lifting jacks allow lifting, lowering, and levelling of containers without the need for an on-site crane. They are ideal for confined spaces or locations where cranes cannot access.
  • Weight Capacity: These jacks can raise and lower container weights ranging from 4 tons to 15 tons.
  • Lifting Heights: Users can fine-tune the height of the jacks to match the container's specific requirements. Adjustable lifting heights from 500 mm to 1,750 mm (with an optional maximum of 2,000 mm).
