TEMP. RECO. (LogTag UTRED30WIFI) 2 chan. display w/o sensor
NST
PCOLMONITL3D
Valid Article
HS Code:
902519
Last Updated on:
23/11/2025, 22:01:49
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
TEMP. RECORDER (LogTag UTRED30-DCWIFI) USBdisplay w/o sensor
Form

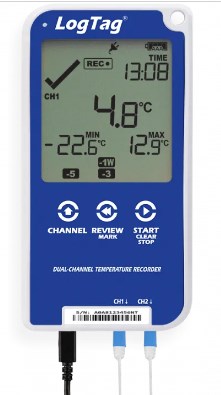

A multi use temperature recorder with Wifi communication, powered by AAA batteries and AC adaptor, equiped wtih a USB connector (no need of a docking station), 2 connectors for external sensors (sensors non included).
Specifications:
- automatic data transmission to the Logtag cloud
- 2 connectors for 2 exterior sensor
- measurement range: -40°C à +99°C
- resolution: 0.1°C
- accuracy: better than ±0.5°C for -20°C~ +40°C
- memory capacity: 16 129 readings
- ampling frequency: adjustable, 30 seconds to 18 hours
- logging start options: push button start or specific date & time, optional start delay of up to 18 hours.
- recording indication: flashing 'OK' indicator / flashing 'ALERT' indicator.
- download time: typically with less than 10 secs depending on computer or readout device used.
- environmental: IP51
- power source:
- 5V via micro USB socket or, 2 x 1.5V AAA alkaline batteries,
- CR2032 3V LiMnO2 (backup logging function only)
- adaptor 230V AC/DC
- battery life: device should normally be powered via USB. AAA batteries provide backup power for up to 2 months
- connection interface: USB 2.0 / Micro USB plug
- WiFi802.11 b/g/n
- Bluetooth® V4.2BR/EDR and Bluetooth LE®
- dimensions (HxWxT) : 141 x 72 x 18 mm
- weight: 158 g
- case material: polycarbonate
Fit
- Interfaces with two external temperature sensors (dual channel), with many models available. These external sensors are not included and must be ordered separately.
- Connects to an existing Wi-Fi network (802.11 b/g/n) for data transmission.
- Configurable via micro-USB (USB 2.0) for power, initial setup, and data download.
Function
- Used to monitor temperature in refrigerators, freezers, blood banks, and pharmacies.
- Allows you to monitor two devices simultaneously.
- Uploads data via Wi-Fi to the Log Tag Online Cloud, which enables remote data monitoring.
- If the temperature exceeds the set limits, an electrical cut occurs, or any other problem arises, the device can send an instant alert via a call, SMS, or WhatsApp.
