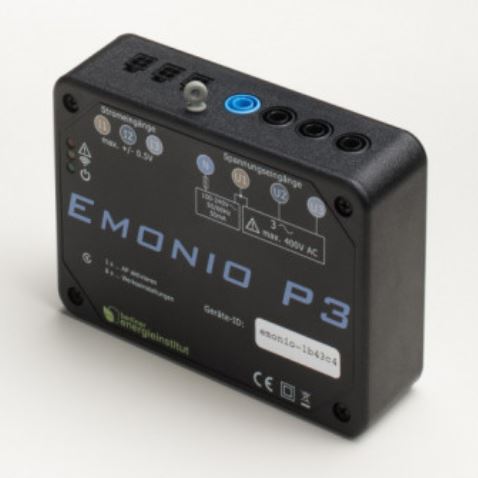

POWER LOGGER (Emonio P3) 3 phase, 16GB

Form

Electrical energy and power logger with memory extension to 16 GB:

  • Measures energy (kWh), power (active, reactive and apparent), voltage, current and power factor.
  • Works in 1-phase and 3-phase electrical installations.
  • Measures voltage of 100 to 240 volts per phase.
  • Measures up to 1200 amperes per phase.
  • It is powered directly from the voltage sensors.
  • Data is stored locally in SD-card in a .CSV file that can be downloaded to a computer.
  • Data can be accessed locally via local WiFi network, BlueTooth with a smartphone, or remotely through a web server if the Emonio is connected to a WiFi network with internet access.
  • Size in mm (LxWxH) 127,00 x 88,90 x 38,10 mm.
  • Weight (incl. cables and magnetic adapters, with current sensors) 445 g.

This article refers to the Emonio P3 power logger alone.The article comes without temperature sensors, Rogowski coils, voltage sensor or any other accessories. To have a complete and ready-to-use bundle check the available bundles:

  • PELEMEASAEF with 50mm Rogowski coils;
  • PELEMEASAEH with 100mm Rogowski coils;
  • PELEMEASAET with 50mm Rogowski coils + 3 temperature sensors + other accessoires.

Closed article: Berliner Energieinstitut GmbH, #0000_P3 + #4001_Emonio_X1. Per piece.

Fit

To be installed in any electrical installation.:

  • In an electrical distribution board.
  • In the output of a generator.
  • At the input/output of a solar or battery charger/inverter.
  • The Emonio P3 is magnetized so it can be attached to a metallic surface.

Function

Electrical energy and power logger that measures energy (kWh), power (active, reactive and apparent), voltage, current and power factor.
