POWER LOGGER (Emonio P3-100) 3 phase, 16GB

Form

Electrical energy and power logger with memory extension to 16GB with Rogowski coils of 100mm and no temperature sensor included.

  • Measures energy (kWh), power (active, reactive and apparent), voltage, current and power factor.
  • Works in 1-phase and 3-phase electrical installations.
  • Measures voltage 100 to 240 volts per phase.
  • Measures up to 1200 amperes per phase.
  • It is powered directly from the voltage sensors.
  • Data is stored locally in a SD card in a .CSV file that can be downloaded to a computer.
  • Data can be accessed locally via local WiFi network, BlueTooth with a smartphone, or remotely through a web server if the Emonio is connected to a WiFi network with internet access.
  • Size in mm (LxWxH): 127,00x88,90x38,10mm
  • Weight (incl. cables and magnetic adapters with current sensors) 445g.

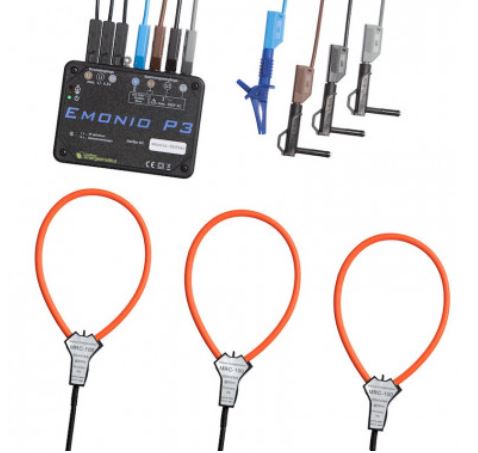

This article refers to a bundle with:

  • 3 Rogowski coils with an inner diameter of 100mm,
  • 4 magnetic voltage test tips,
  • 4 crocodile voltage test clamp,
  • 4 test leads with wire and ferrule.

Closed article: Emonio, #0007_P3_100 + #4001_Emonio_X1. Per set with accessories.

Fit

To be installed in any electrical installation.:

  • In an electrical distribution board.
    • This bundle comes with the 100mm Rogowski coils which is large enough for most busbars. When using with cables consider the 50mm Rogowski coils avec articlecode PELEMEASAEF.
    • Either in the main distribution board or a sub distribution board.
    • It can measure the overall electrical consumption of the board or a particular circuit or group of circuits.
  • The bundle comes with 2 types of voltage sensors:
    • ​Magnetic tips to be installed on an existing breaker.
    • Cables with wire and ferrule to be installed on a screwed terminal. Useful for more stable and long-term installations.
  • In the output of a generator.
  • At the input/output of a solar or battery charger/inverter.
  • The Emonio is magnetized so it can be attached to a metallic surface.

Function

Electrical energy and power logger that measures energy (kWh), power (active, reactive and apparent), voltage, current and power factor.
