POWER LOGGER (Emonio P3-50 + temp.) 3 phase, 16GB

https://unicat.msf.org/cat/product/90948
NST PELEMEASAET

Valid Article

UN3091
Hazardous materials and products (identified by their 4-digit transport UN-number) must be transported under certain conditions as specified in the MSDS sheet (Material Safety Data Sheet).
OC subscriptions: included in supply or field order tools (e.g. UniField)
SC subscriptions: included in supply or field tools
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)

This combination does not exist.

See Related

Add article to list


Create Cancel

Add Kit To Wishlist


Create Cancel

Documents

  • Power Logger Emonio P3 User Manual

POWER LOGGER (Emonio P3-50 + temp) 3 phase, 16MB

Form

Electrical energy and power logger with memory extension to 16GB with Rogowski coils of 50mm and a temperature sensor included.

  • Measures energy (kWh), power (active, reactive and apparent), voltage, current, power factor and temperature.
  • Works in 1-phase and 3-phase electrical installations.
  • Measures voltage 100 to 240 volts per phase.
  • Measures up to 1200 amperes per phase.
  • Measures the temperature between -55 and +125°C.
  • It is powered directly from the voltage sensors.
  • Data is stored locally in a SD-card in a .CSV file that can be downloaded to a computer.
  • Data can be accessed locally via local WiFi network, BlueTooth with a smartphone or remotely through a web server if the Emonio is connected to a WiFi network with internet access.
  • Size in mm (LxWxH): 127,00x88,90x38,10mm
  • Weight (incl. cables and magnetic adapters, with current sensors) 445g.

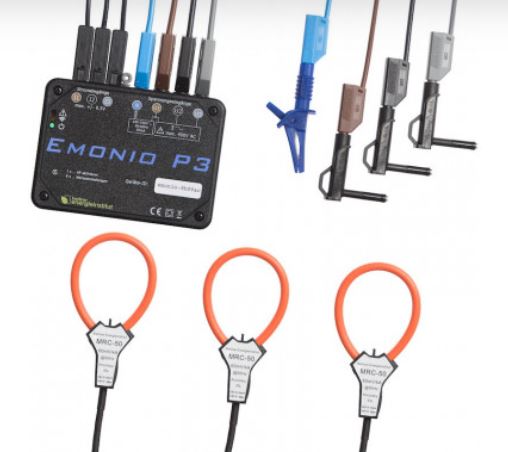

This article refers to a bundle with:

  • 3 Rogowski coils with an inner diameter of 50mm,
  • 4 magnetic voltage test tips,
  • 4 crocodile voltage test clamp,
  • 4 test leads with wire and ferrule,
  • Adaptor to connect 3 temperature sensors to an Emonio P3 with a 5m cable,
  • 3 temperature sensors.

Closed article: Emonio, #0006_P3_50 + #4001_Emonio_X1 + #4002_X1_Buchse. Per set with accessories.

Fit

To be installed in any electrical installation.:

  • In an electrical distribution board.
    • This bundle comes with the 50mm Rogowski coils which are large enough for most cables sizes. In case of larger busbars consider the 100mm Rogowski coils, articlecode PELEMEASAEH.
    • Either in the main distribution board or a sub distribution board.
    • It can measure the overall electrical consumption of the board or a particular circuit or group of circuits.
  • The bundle comes with 2 types of voltage sensors:
    • ​Magnetic tips to be installed on an existing breaker.
    • Cables with wire and ferrule to be installed on a screwed terminal. Useful for more stable and long-term installations.
  • In the output of a generator.
  • At the input/output of a solar or battery charger/inverter.
  • The Emonio is magnetized so it can be attached to a metallic surface.
  • The temperature sensors can be placed indoor or outdoor up to 8 meters away from the Emonio.

Function

Electrical energy and power logger that measures energy (kWh), power (active, reactive and apparent), voltage, current, power factor and temperature.
