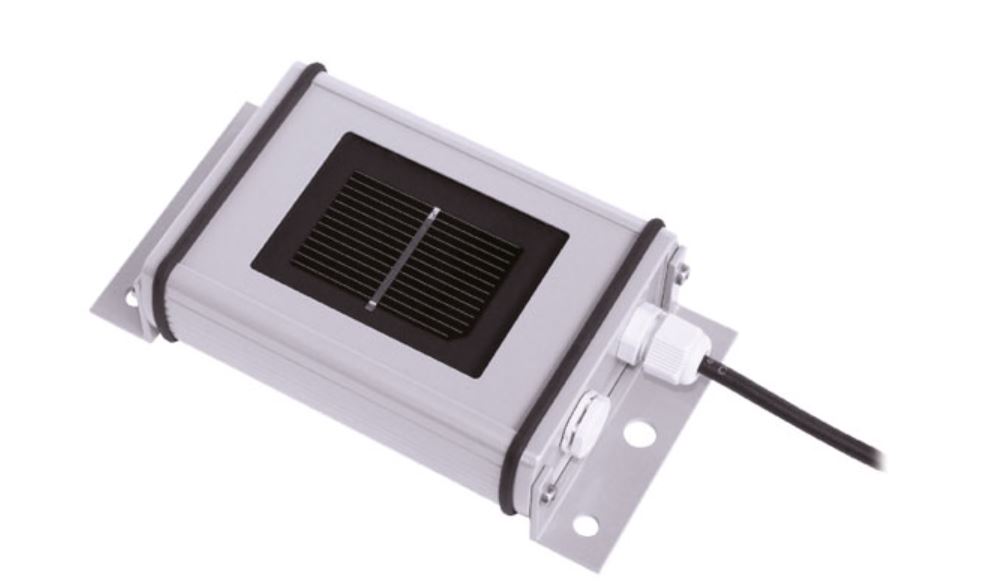

SOLAR IRRADIANCE SENSOR (IMT Si-RS485TC-T-M) 3m, RS485

Form

Silicon solar irradiance sensor with shielded cable, 0.14 mm², UV- and temperature resistant, 3 m length and ferrules:

  • Solar cell: Monocrystalline silicon (50 mm x 33 mm).
  • Operating temperature: -35 °C to 80 °C.
  • Electrical connection: 3 m shielded cable.
  • Case, protection mode: Powder-coated aluminium, IP 65.
  • Power supply: 24 VDC.
  • Temperature compensation: Yes.
  • Dimension, weight: 155mmx85mmx39mm, approx. 350 to 470 g.
  • Customs number for all sensors: 85 41 40 90.
  • Protocol: MODBUS RTU.
  • Interface: RS485 up to 38.4 kBaud.
  • Galvanic isolation: 1.000 V between power supply and bus.

Fit

To be installed on a roof with solar panels. It communicates using MODBUS RTU protocol over a RS485 interface.

Function

Silicon irradiance sensors are used for the measurement of solar irradiance and the temperature of the sensor cell.

This silicon irradiance sensor fits for measuring solar irradiance for monitoring photovoltaic systems.
