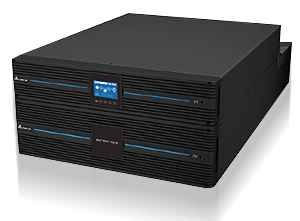

MODULE UPS double convers. (Delta Amplon RT) 20kVA, 3ph/1ph

Form

  • Nominal power:‌ 20 kVA/20 kW
  • Nominal input voltage: 400/230 V AC
  • Input voltage range:
    • 305 - 485 V AC - 100% load
    • 138 - 305 V AC 40% - 100% load
  • Input and output frequency: 50 or 60 Hz
  • Power factor: >0.99
  • Efficiency (full load): >92%
  • Without battery
  • 3-phase input
  • 1-phase output
  • With a LCD-display
  • Dimensions WxDxH: 440 x 760 x 88.2 mm
  • Weight: 22.5kg

There is no connection between the incoming power and the outgoing power. All possible electrical problems such as voltage spikes are eliminated.

This kit contains of 5 articles:

  • PELEUPSDCTDE - The electronic unit of the Delta 20 kVA extended model 3ph/1ph
  • 2x PELEUPSD06DXB - Each battery cabinet with batteries with a total capacity of 20x9Ah
  • PELEUPSD06DXP - Pack of spare filters (10 left, 10 right) and strips (40) for both the electronic unit and the battery cabinet
  • 5x PELEBOXEG32PL - CABLE GLAND, plastic, M32, Ø15-21mm, IP68 [OBO BETTERMANN 2022 87 0]
  • 5x PELEBOXEL32PL - LOCKNUT, plastic, M32, for cable gland [OBO BETTERMANN 2048 94 9]

Fit

Can be used in any electrical installation. The UPS electronic unit always needs to be connected to at least two battery pack. Multiple battery packs can be installed in parallel to increase the backup time.

Function

This UPS, or also called double conversion uninterruptible power supply, guarantees a perfect AC supply and is especially suitable for vulnerable and/or expensive equipment such as medical and laboratory equipment.
