(Delta Amplon RT-5/6 EXTENDED) EXT BATTERIES+CASING, 20x9Ah
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
(Delta Amplon RT-5/6 EXTENDED) EXT BATTERIES+CASING, 20x9Ah
Form

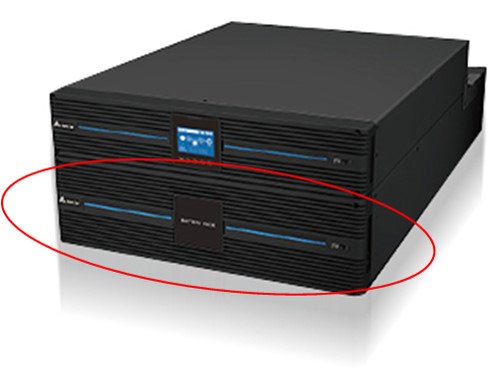

A modular battery case containing 20x 12V 9Ah batteries. Unit is rack mountable taking 3U.
Fit
This unit is only the batteries and must be used with the online UPS. Can be used with all "new" Delta Amplon RT series models. Can be put in parallel with other battery packs to increase UPS autonomy. It is not necessary to replace the entire case but only the batteries inside.
NOTE: not compatible with "old" (PELEUPSD06D) UPS
Function
Stores energy to power critical loads connected to the UPS in the case of a black-out.
Transport Dangerous Goods
UN2800: special provisions in air (A67) and sea (238) that allow us to send the product as not subject to regulation.
You need to prove that batteries have past vibration test, pressure differential test and leakage test. These tests should be mentioned on the MSDS or on additional documentation.
