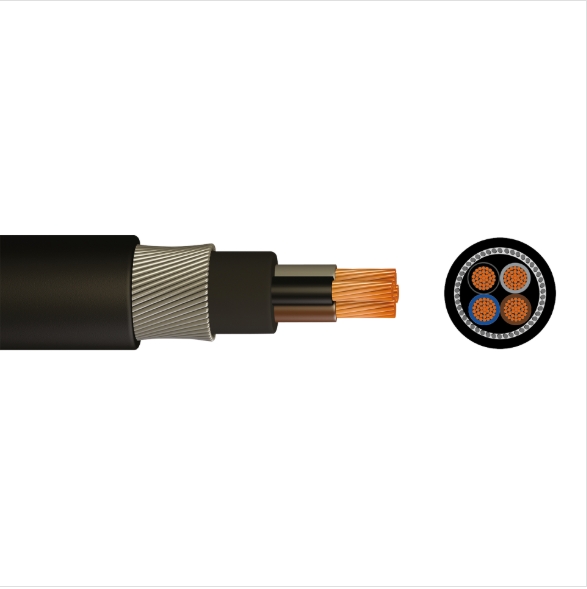

CABLE rigid (EAC) copper, 4x4mm², armoured, per meter
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
CABLE rigid (EAC) copper, 4x4mm², armoured, per meter
Form
Steel Wire Armoured (SWA) Power and Control Cable
core Configuration: 4-core (Brown, Black, Black, Grey)
conductor Material & Class: Stranded Copper, Class 2
nominal Cross-Section Area: 4 × 4.0 mm²
overall Cable Diameter: 15.5 mm
insulation Material: Cross-linked Polyethylene (XLPE)
Outer Sheath Material: Polyvinyl Chloride (PVC), Black
filler Material: Polyvinyl Chloride (PVC)
armour Type: Steel Wire Armour (SWA)
Per meter.
Fit
rated Voltage (Uo/U): 600 / 1000 V
AC Test Voltage: 3.5 kV
installation compatibility:
suitable for direct burial
suitable for trays, baskets, free air, and surface clipping
compatible with outdoor and indoor environments
mechanical Compatibility: steel Wire Armour provides resistance to external impacts and stress
bending Radius: minimum 8 × D
Function
Supply and distribute electrical power with high mechanical protection
how it is used:
laid underground, clipped to surfaces, or routed on trays/baskets
used in outdoor power applications, auxiliary circuits, and control circuits
limitations:
not LSZH (not suitable for low-smoke / fire-critical indoor applications)
not designed for EV charging (according to data)
durability: SWA construction ensures long life in harsh, outdoor, and underground environments
certifications: Compliant for general electrical installations requiring BS 5467 and BASEC approval
