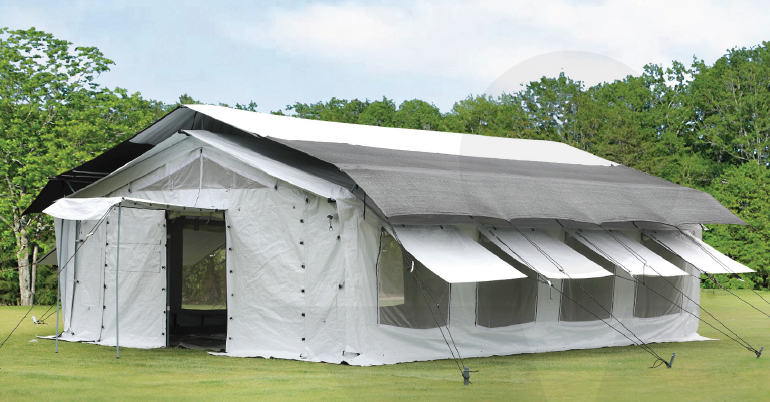

TENT (Huggy ProHPT48) 48m², 8x6x3m + groundsheet & shade net

Form

  • Key features:
    • Huggy Pro - High Performance Multipurpose Tent made of high quality and durable materials, ensuring a strong construction.
    • Solution is comprised of outer cover, shade net, groundsheet and partition.
    • A spacious 48 m² tent with vertical walls for optimum use of inner space.
  • Dimensions:
    • Total size: 48 m²
    • Floor size: 6.0 x 8.0 m (±1%)
    • Central height outer tent: 3.00 m (±1%)
    • Wall height outer tent: 2.05 m (±1%)
    • Structure: Lightweight tubular steel frame structure
    • Window size: 135 x 135 cm
    • Ventilation grates: 135 x 20 cm
  • Materials:
    • Outer liner and mud flaps: 250 g/m² ±10% HDPE/LDPE laminated woven fabric, waterproof 5000 mm, UV resistant, fire retardant CPAI 84-6, rot-proof and durable.
    • Ground sheet: 190 g/m² ±10% HDPE/LDPE laminated woven fabric, waterproof 5000 mm, fire retardant CPAI 84-5, rot-proof and durable.
    • Shade net: 190 g/m² ±10% HDPE knitted mesh, UV-resistant, rot-proof, fire retardant CPAI 84-6. 10x guy rope PP 4.5 m / 10 mm Ø with reflective stripes and ‘glow-in-the-dark PE tensioner.
    • PES mesh, PVC coated, for windows and ventilation grates: 195 g/m² ±10% PVC coated PES knitted mesh, UV resistant and fire retardant Din 75200.
    • Steel tubing for frame: Steel quality: high tensile steel, quality Q195, rolled and welded tubing, electrolytic galvanized. Diameter 38 mm, wall thickness 1.5 mm. Frame components are powder coated after fabrication.
    • Partitioning kit: 190 g/m² ±10% HDPE/LDPE laminated woven fabric, waterproof 5000 mm, UV resistant, fire retardant CPAI 84-6, rot-proof and durable. Attached to frame or inner liner with toggles/loops. Overlapping door in center with toggle/loop closure. Dimensions 600 cm x 210 cm (wall) / 300 cm (center).
    • Master bags: PVC 450 g/m², waterproof 10.000 mm
    • Carry bags: 190 g/m² ±10% HDPE/LDPE laminated woven fabric, waterproof 5000 mm, fire retardant CPAI 84-6, rot-proof and durable.
    • Doors: PE material. Center door: 120 x 200 cm, side doors 150 x 200 cm. Closing by strong block zippers, with buckle closures as back up in case of failure. Mosquito net doors: 80 g/m² Polyester mesh.

Fit

  • Accessories:
    • 10x T-stakes – 50 x 25/3 mm / 40 cm
    • 36x Lollypop pegs - 8 mm Ø 30 cm
    • 10 + 4 Twisted spikes - 20 mm Ø 60 cm
    • 8x Twisted spikes – 10 mm Ø 40 cm
    • 2x Candy cane pegs - 10 mm Ø 30 cm (canopy kit)
    • 10x guy rope PP 4.5 m / 10 mm Ø with reflective stripes and ‘glow-in-the-dark PE tensioner.
  • Repair kit: Patches of all fabrics, needles and tread, duct tape, zipper puller, buckles, rope, runners, webbing, repair instruction, packed in marked pouch with hanging loops.
  • Add-ons:
    • Inner liner
    • Winter liner with insulated flooring
    • Hard flooring
    • Electrical lighting kit
    • Solar lighting kit

Function

  • Multipurpose tent for use as a dispensary, hospital, feeding center, cholera camp, warehouse, office, or short: middle term accommodation for teams.
  • Strong and lightweight high tensile steel frame structure to withstand high wind and snow loads.
  • Rot and mildew-proof, easy to clean and disinfect, resistant to commonly used disinfectants and detergents.
  • Cost-efficient, lightweight, and compact packing.
  • High performing in hot, cold, and wet weather conditions; does not ‘heat up' indirect sunlight, blocks UV, and does not break or absorb moisture in below-zero temperatures.
  • High comfort thanks to advanced ventilation and large mesh windows.
  • Environmentally friendly: low energy production process, fully recyclable, safely disposable by burning or burying when recycling is not possible.
