REFRIGERANT MANIFOLD R22/R407C/R32/R410A, analog, 2-way, set
NST
CCLITOOLMM54
Valid Article
HS Code:
902620
Last Updated on:
04/04/2025, 22:02:20
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|

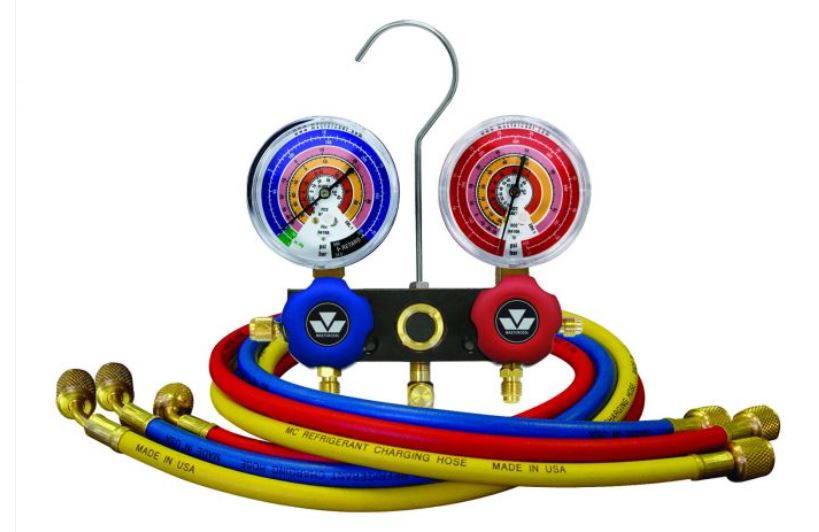

REFRIGERANT MANIFOLD R22/R407C/R32/R410A, analog, 2-way, set
Form
A 2-way aluminum analog refrigerant manifold.
Specifications:
- measuring units: Bar/PSI/°C
- set of 3 hoses: blue, yellow, red
- hose diameter: 1/4" (6.35mm)
- length of hoses: 150cm
- ball valve at the end of the hose
- 1.0 gauge class, 80 mm gauges
- refrigerant scales: R22/ R407C/ R32/ R410A
- includes 2 pieces of flex adapters with ball valve to convert 1/4" (6.35mm) hose into 5/16" (7.93mm)
Fit
This analog manifold can be used for any refrigeration system using one of the following refrigerants: R22/ R407C/ R32/ R410A.
It can be connected to valve fitting of 1/4" (6.35mm) diameter, or using the flex adapter to connect to valve fitting of 5/16" (7.93mm).
Function
The refrigerant manifold is used to measure and control the refrigerant pressures of any type of HVAC system to ensure it works efficiently and safely.
